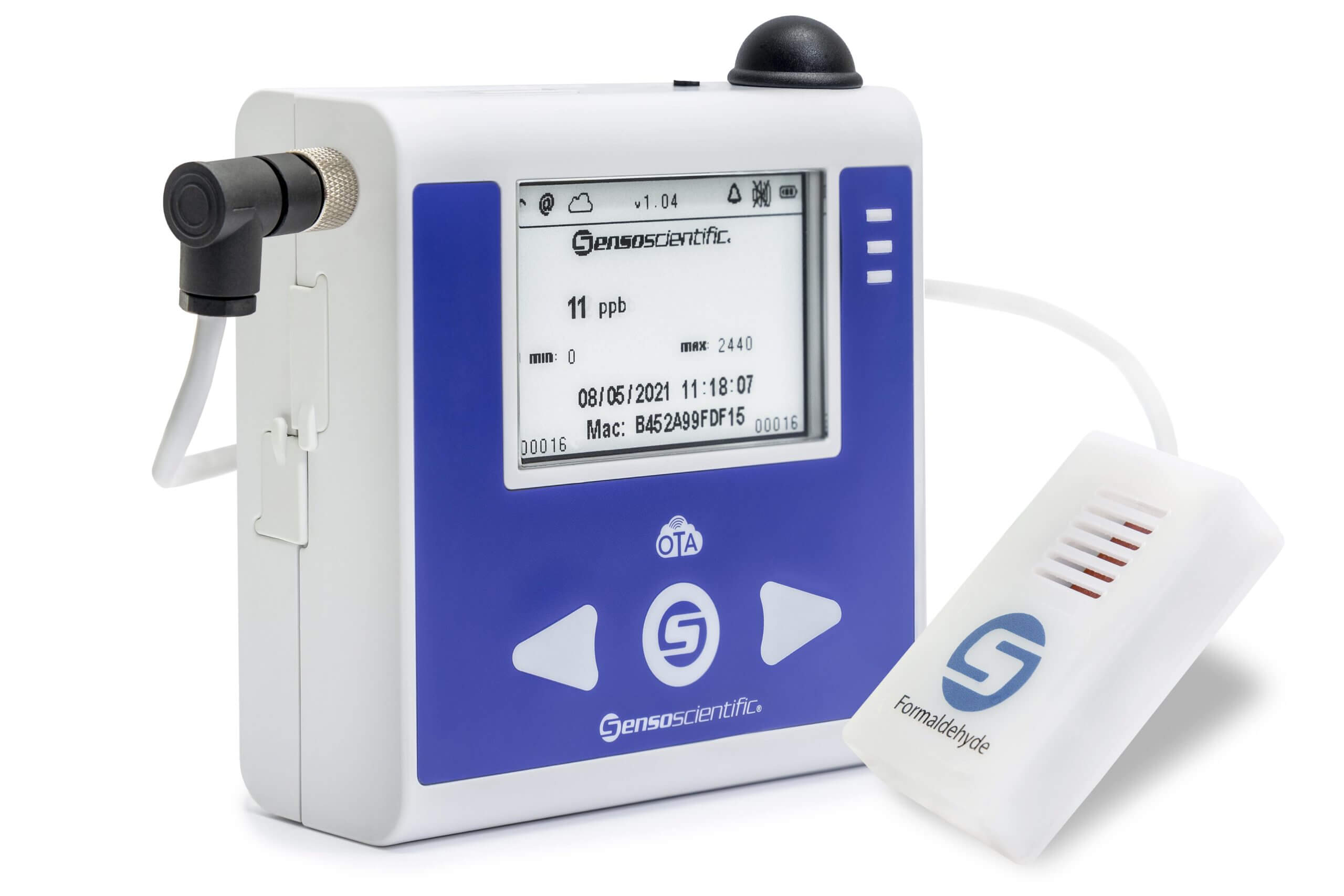

Formaldehyde, Temperature & Humidity Probe
Surpass WHO air quality guidelines and monitor formaldehyde & ambient temperature/humidity up to 5000 PPB.
Request a Quote
"*" indicates required fields
Request a Quote
"*" indicates required fields
- Product Description
- Key Features
- Product Specifications
- Part Numbers
SensoScientific Wi-Fi transmitters are high speed wireless modules with PEAPv0 enterprise security, capable of collecting, storing, and transmitting data wirelessly over a standard 802.11 b/g/n (Wi-Fi – RF Frequency 2.4 to 2.497 GHz) with TCP protocol. The transmitter passes information to a standard access point which can be accessed by any Wi-Fi enabled network. Each transmitter monitors against preset conditions that are defined by the user. Additional alerts can be provided through a variety of methods such as SMS, text message, voice, pager, cell phone, fax, and e-mail. Information recorded in PPB or PPM to the database is time-stamped and cannot be altered through the user interface.
| ● Onboard, Low Power E-Ink Display | ● Push Button for Real-Time Readings | ● Dual Power ― Battery & AC |
| ● True Embedded Wi-Fi Solution | ● NIST & A2LA Accredited SNAP Calibration | ● Enterprise-Wide Scalability |
| ● Device-Level Certificates | ● Multi-LED for Connectivity Status | ● FIPS Compliant Validated Cloud |
| ● FDA 21 CFR Part 11 Compliant | ● Lowest Total Cost of Ownership | ● No Proprietary Software |
| Formaldehyde Range: | 0 to 1000 PPB |
| Formaldehyde Limit: | 5000 PPB |
| Formaldehyde Accuracy: | ±20 PPB |
| Ambient Temperature Range: | 0°C to 40°C |
| Ambient Humidity Range: | 10% RH to 90% RH |
| Service Life: | > 6 Years |
| Long-Term Drift: | < 5 PPB / Year |
| Formaldehyde Supply Voltage: | 3.3V |
| Supply Current: | 1mA |
| Housing: | ABS Plastic |
| Dimensions: | Height: 0.5″ (12.91mm) |
| Width: 1.30″ (33.24mm) | |
| Length: 2.17″ (55.21mm) | |
| Cable Length: | 5″ – 6″ |
| GAS01-3 | Formaldehyde Probe |
Product Description
SensoScientific Wi-Fi transmitters are high speed wireless modules with PEAPv0 enterprise security, capable of collecting, storing, and transmitting data wirelessly over a standard 802.11 b/g/n (Wi-Fi – RF Frequency 2.4 to 2.497 GHz) with TCP protocol. The transmitter passes information to a standard access point which can be accessed by any Wi-Fi enabled network. Each transmitter monitors against preset conditions that are defined by the user. Additional alerts can be provided through a variety of methods such as SMS, text message, voice, pager, cell phone, fax, and e-mail. Information recorded in PPB or PPM to the database is time-stamped and cannot be altered through the user interface.
Key Features
| ● Onboard, Low Power E-Ink Display | ● Push Button for Real-Time Readings | ● Dual Power ― Battery & AC |
| ● True Embedded Wi-Fi Solution | ● NIST & A2LA Accredited SNAP Calibration | ● Enterprise-Wide Scalability |
| ● Device-Level Certificates | ● Multi-LED for Connectivity Status | ● FIPS Compliant Validated Cloud |
| ● FDA 21 CFR Part 11 Compliant | ● Lowest Total Cost of Ownership | ● No Proprietary Software |
Product Specifications
| Formaldehyde Range: | 0 to 1000 PPB |
| Formaldehyde Limit: | 5000 PPB |
| Formaldehyde Accuracy: | ±20 PPB |
| Ambient Temperature Range: | 0°C to 40°C |
| Ambient Humidity Range: | 10% RH to 90% RH |
| Service Life: | > 6 Years |
| Long-Term Drift: | < 5 PPB / Year |
| Formaldehyde Supply Voltage: | 3.3V |
| Supply Current: | 1mA |
| Housing: | ABS Plastic |
| Dimensions: | Height: 0.5″ (12.91mm) |
| Width: 1.30″ (33.24mm) | |
| Length: 2.17″ (55.21mm) | |
| Cable Length: | 5″ – 6″ |
Part Numbers
| GAS01-3 | Formaldehyde Probe |
How It Works

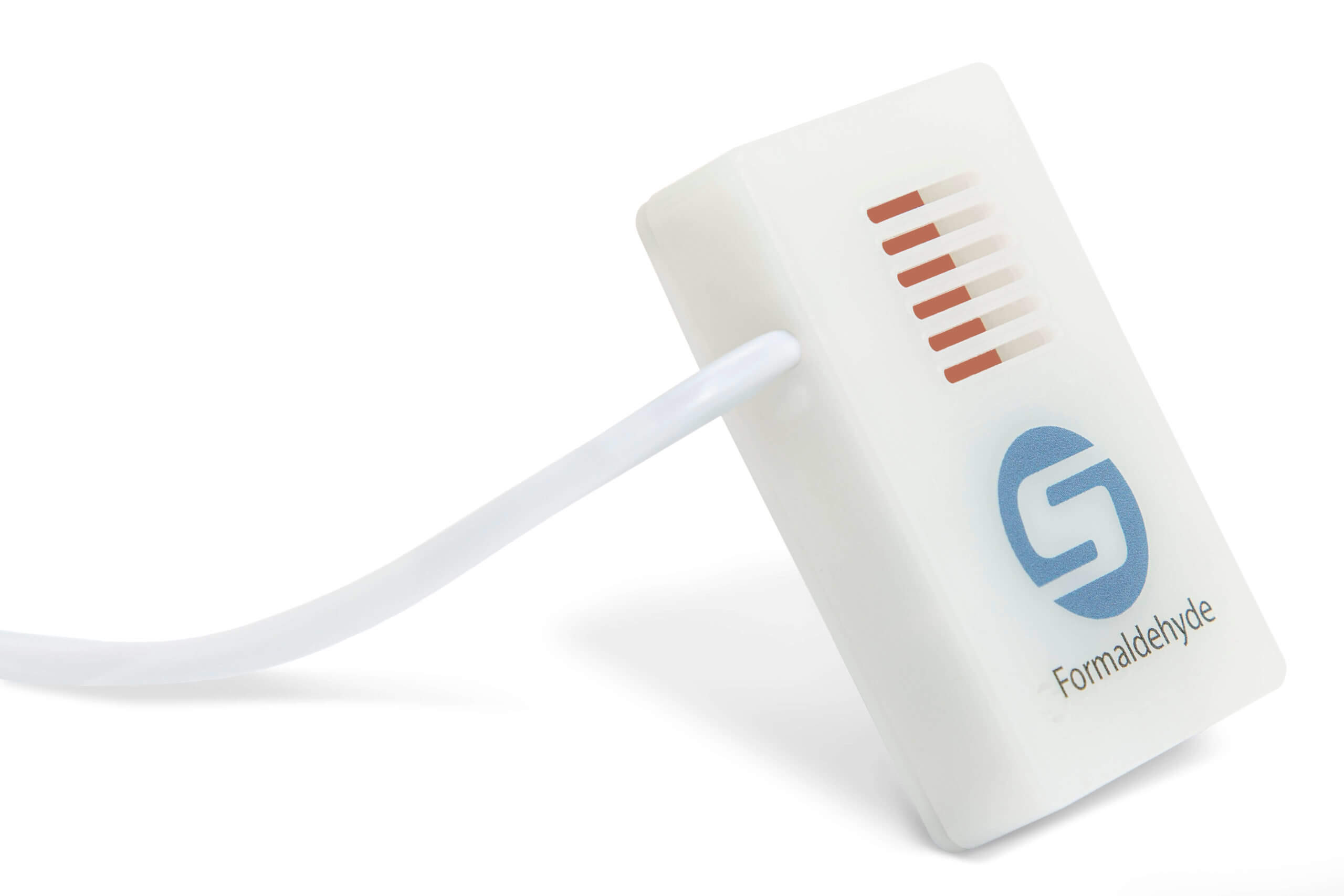

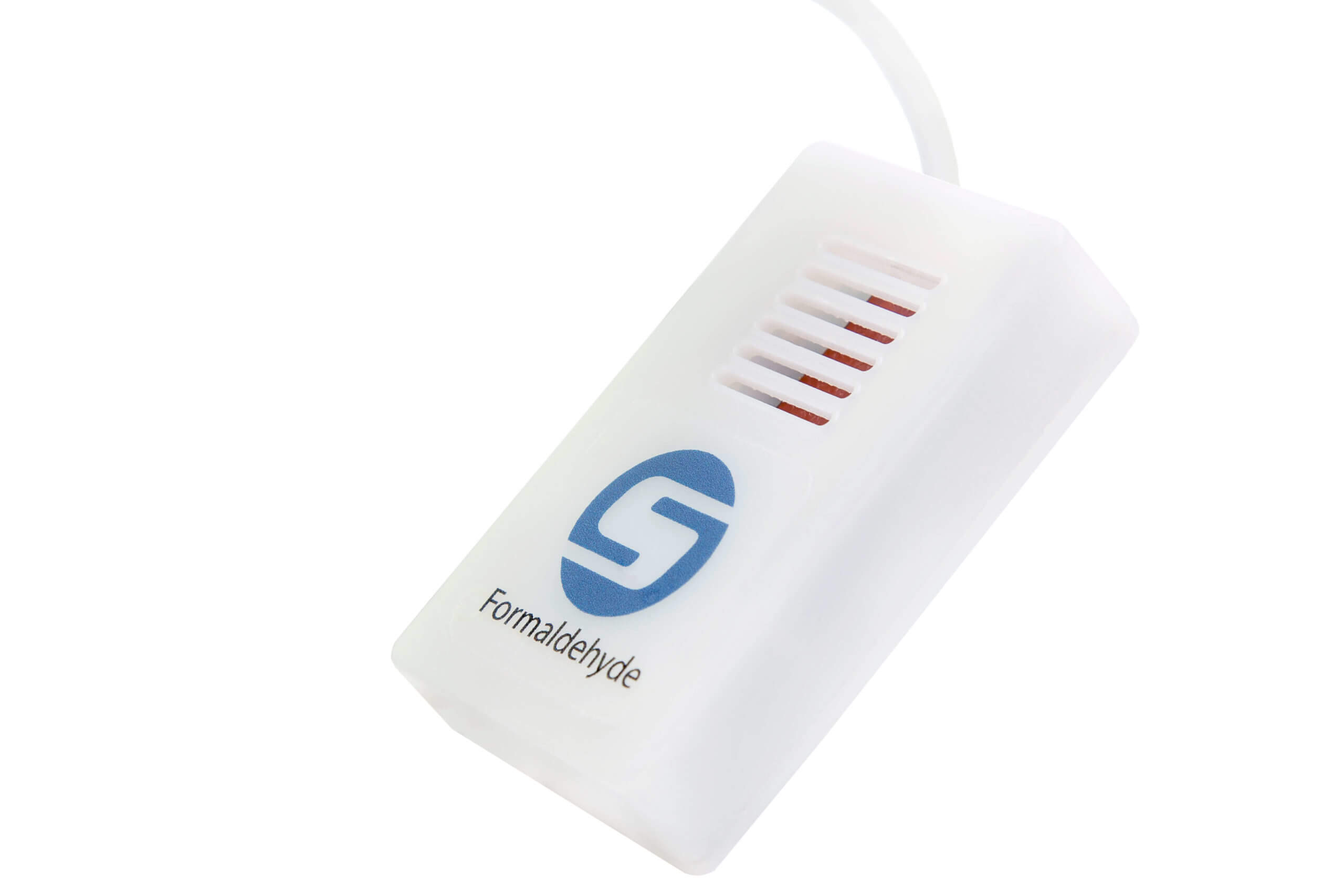

Probe
Probes attach to SensoScientific nodes via M8 connector to measure desired parameters.
Wireless Sensor
Nodes use Wi-Fi to upload data to the SensoScientific Cloud for immediate use.
SensoScientific Cloud
From the cloud, you can view calibration certificates, access data records, and more.
