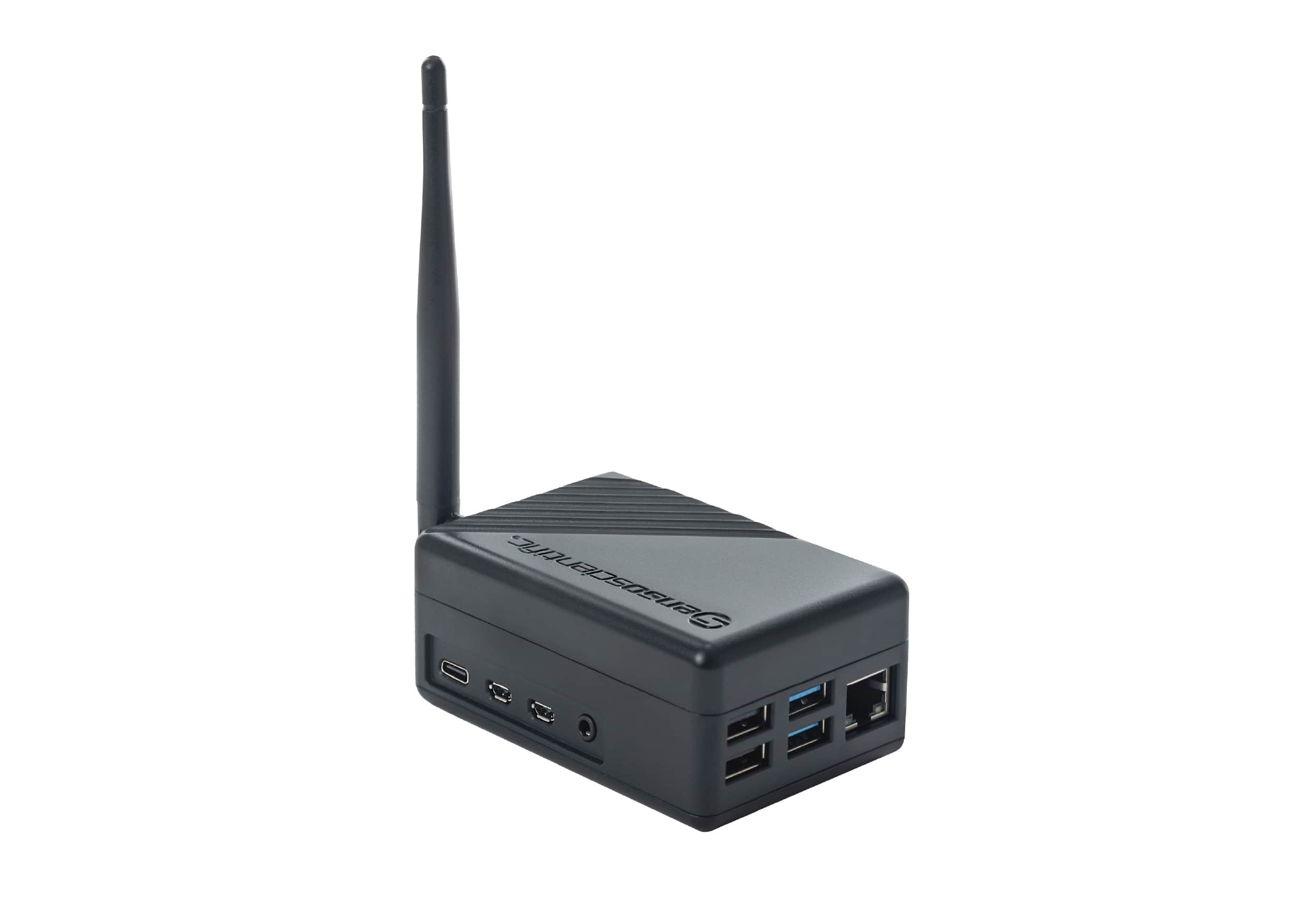

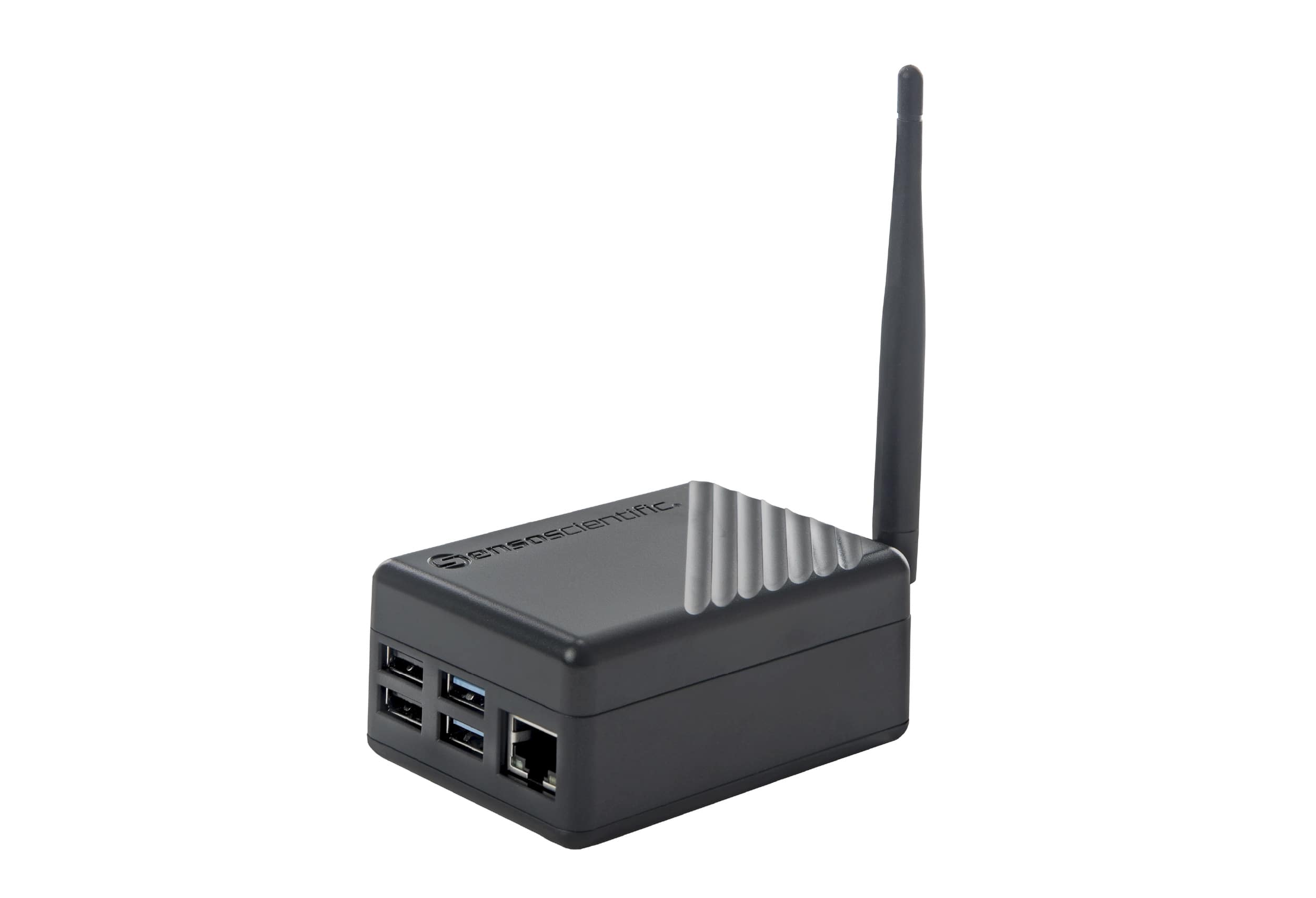

Sub-1 GHz Gateway

Robust Sub-1 GHz IoT gateway that hosts over 200 nodes through concrete walls, brick buildings, and industrial landscapes.

SensoScientific sub-1 ghz gateway
  • SensoScientific sub-1 ghz gateway

Request a Quote

"*" indicates required fields

Are you interested in a free trial?
This field is for validation purposes and should be left unchanged.

Request a Quote

"*" indicates required fields

Are you interested in a free trial?
This field is for validation purposes and should be left unchanged.
  • Product Description
  • Key Features
  • Product Specifications
  • Resources

SensoScientific Sub-1GHz series gateways allow you to launch an independent network infrastructure without Wi-Fi dependence. This Iot network can host more than 200 nodes from one gateway. The connected long-range, low-power data loggers can be placed directly inside your storage unit, warehouse, refrigerator, and desired location while maintaining connectivity to the 900 MHz gateway. Devices store up to 4,000 readings locally and transmit data to the FDA 21 CFR Part 11 (ERES) validated SensoScientific Cloud for full audit traceability. Sub-1 GHz nodes come equipped with a solid thermal buffer. Whether you are seeking to monitor temperature, humidity, differential pressure, or a combination of parameters, this powerful sensor can document environmental conditions for two separate parameters simultaneously.

●  Long Range, Low Power Robust Network ●  True Embedded 900 MHz Solution ●  FDA 21 CFR Part 11 Compliant
●  External E-Ink Display ●  Device-Level Certificates ●  Push Button for Real-Time Readings
●  NIST & A2LA Accredited SNAP Calibration ●  Multi-LED for Connectivity Status ●  Up to 4,000 Buffered Readings
●  Enterprise-Wide Scalability ●  Easy Installation ●  24/7 Alert Notifications
Ambient Operating Range: -40°C to 80°C (-40°F to 176°F)
Support: Over 200 devices
RF Frequency: 902 MHz to 928 MHz (US), 863 MHz to 868 MHz (EU), 2.4 GHz to 2.483 GHz (BLE)
Radio Protocol: Sub-1 GHz, BLEv5.2
Channels: 129
Channel Selection: Frequency Hopping
Date Rate: 5kbps (Long Range)
Tx Power: +20dBm
Wireless Range: 1+ Mile Node-Gateway Line of Sight
Power Supply: External Power ― 5V USB-C
Externa Antenna: 90° Bendable; 4.53″ (115mm); 915 MHz Dipole
Dimensions: Length: 3.67″ (93mm)
Width: 2.46″ (63mm)
Thickness: 1.62″ (41mm)

Product Description

SensoScientific Sub-1GHz series gateways allow you to launch an independent network infrastructure without Wi-Fi dependence. This Iot network can host more than 200 nodes from one gateway. The connected long-range, low-power data loggers can be placed directly inside your storage unit, warehouse, refrigerator, and desired location while maintaining connectivity to the 900 MHz gateway. Devices store up to 4,000 readings locally and transmit data to the FDA 21 CFR Part 11 (ERES) validated SensoScientific Cloud for full audit traceability. Sub-1 GHz nodes come equipped with a solid thermal buffer. Whether you are seeking to monitor temperature, humidity, differential pressure, or a combination of parameters, this powerful sensor can document environmental conditions for two separate parameters simultaneously.

Key Features

●  Long Range, Low Power Robust Network ●  True Embedded 900 MHz Solution ●  FDA 21 CFR Part 11 Compliant
●  External E-Ink Display ●  Device-Level Certificates ●  Push Button for Real-Time Readings
●  NIST & A2LA Accredited SNAP Calibration ●  Multi-LED for Connectivity Status ●  Up to 4,000 Buffered Readings
●  Enterprise-Wide Scalability ●  Easy Installation ●  24/7 Alert Notifications

Product Specifications

Ambient Operating Range: -40°C to 80°C (-40°F to 176°F)
Support: Over 200 devices
RF Frequency: 902 MHz to 928 MHz (US), 863 MHz to 868 MHz (EU), 2.4 GHz to 2.483 GHz (BLE)
Radio Protocol: Sub-1 GHz, BLEv5.2
Channels: 129
Channel Selection: Frequency Hopping
Date Rate: 5kbps (Long Range)
Tx Power: +20dBm
Wireless Range: 1+ Mile Node-Gateway Line of Sight
Power Supply: External Power ― 5V USB-C
Externa Antenna: 90° Bendable; 4.53″ (115mm); 915 MHz Dipole
Dimensions: Length: 3.67″ (93mm)
Width: 2.46″ (63mm)
Thickness: 1.62″ (41mm)

Resources

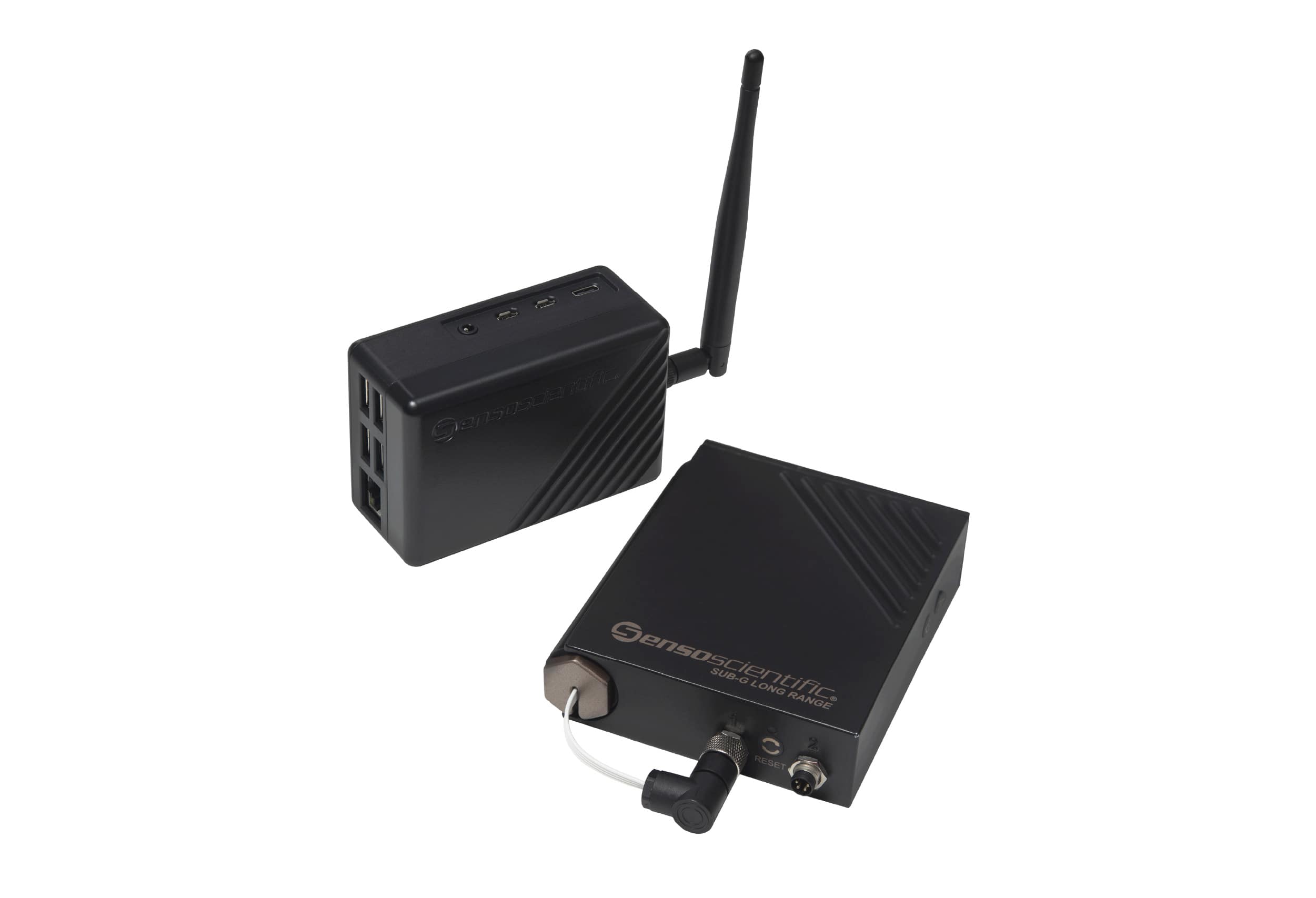

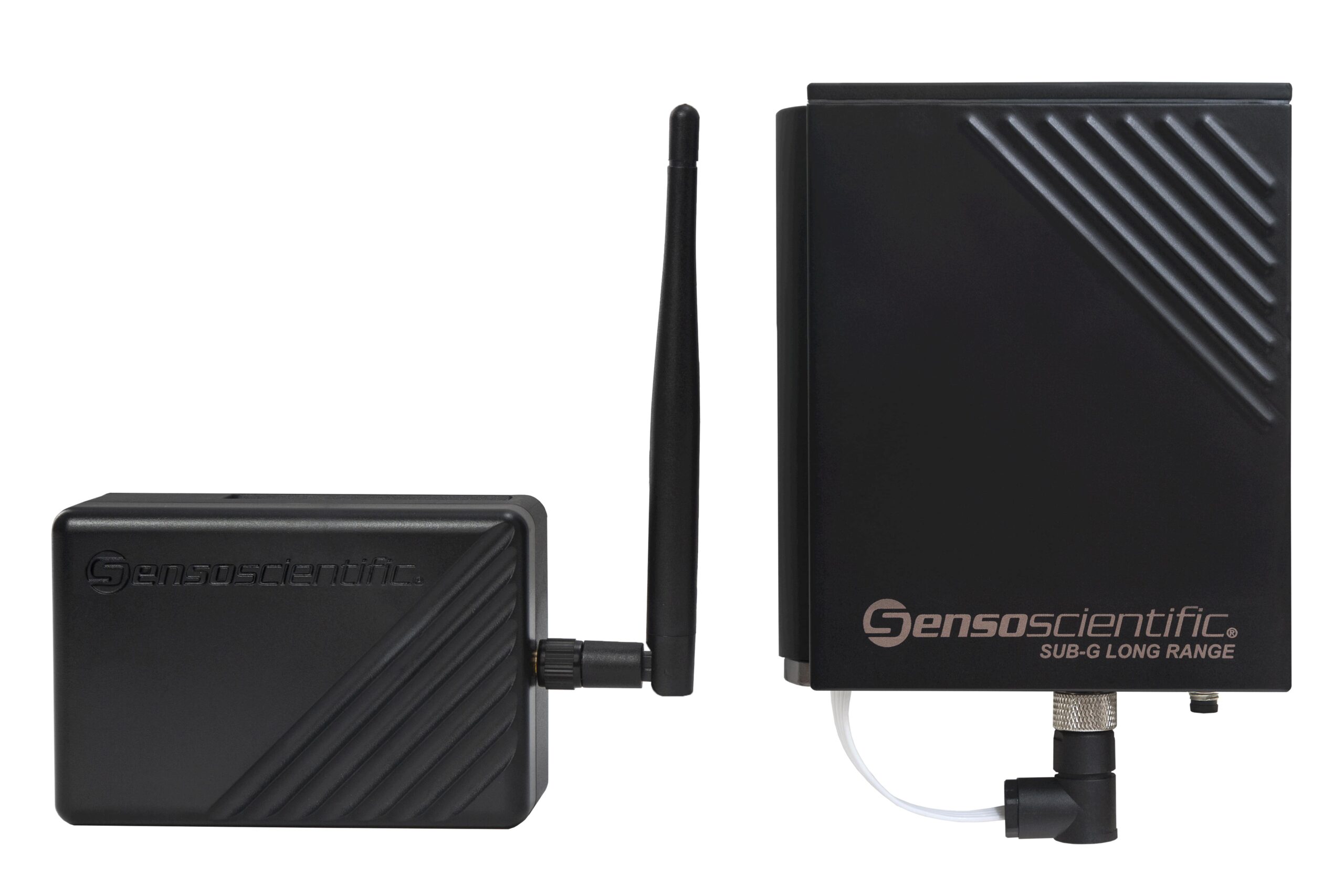

How It Works

Wireless Sensor

Data Loggers store data locally then transmit readings to the 900 MHz gateway.

900 MHz Gateway

The 900 MHz gateway transfers all recorded data to the SensoScientific Cloud.

External Display

The external display shows logged data from the Cloud for easy visibility.
