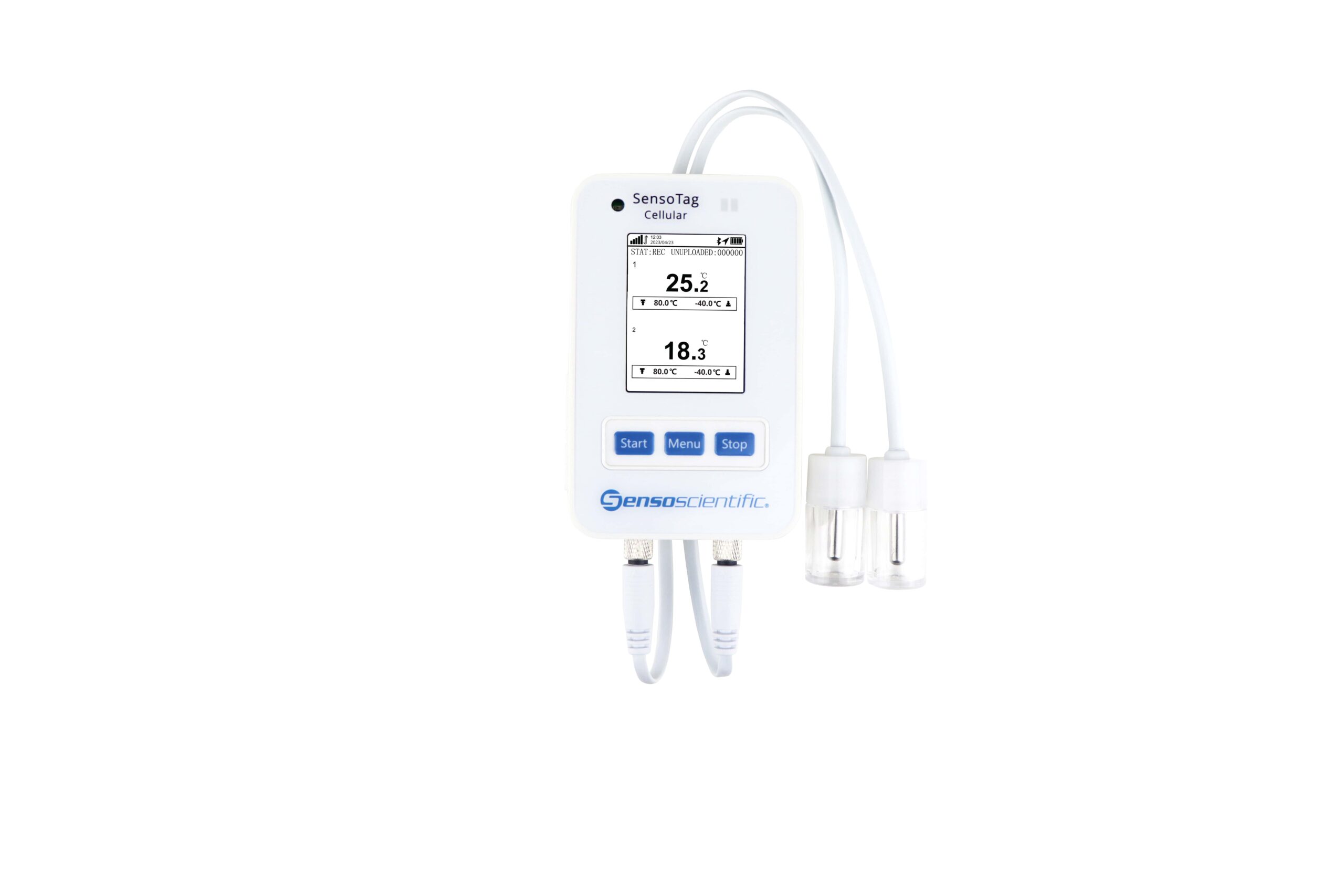

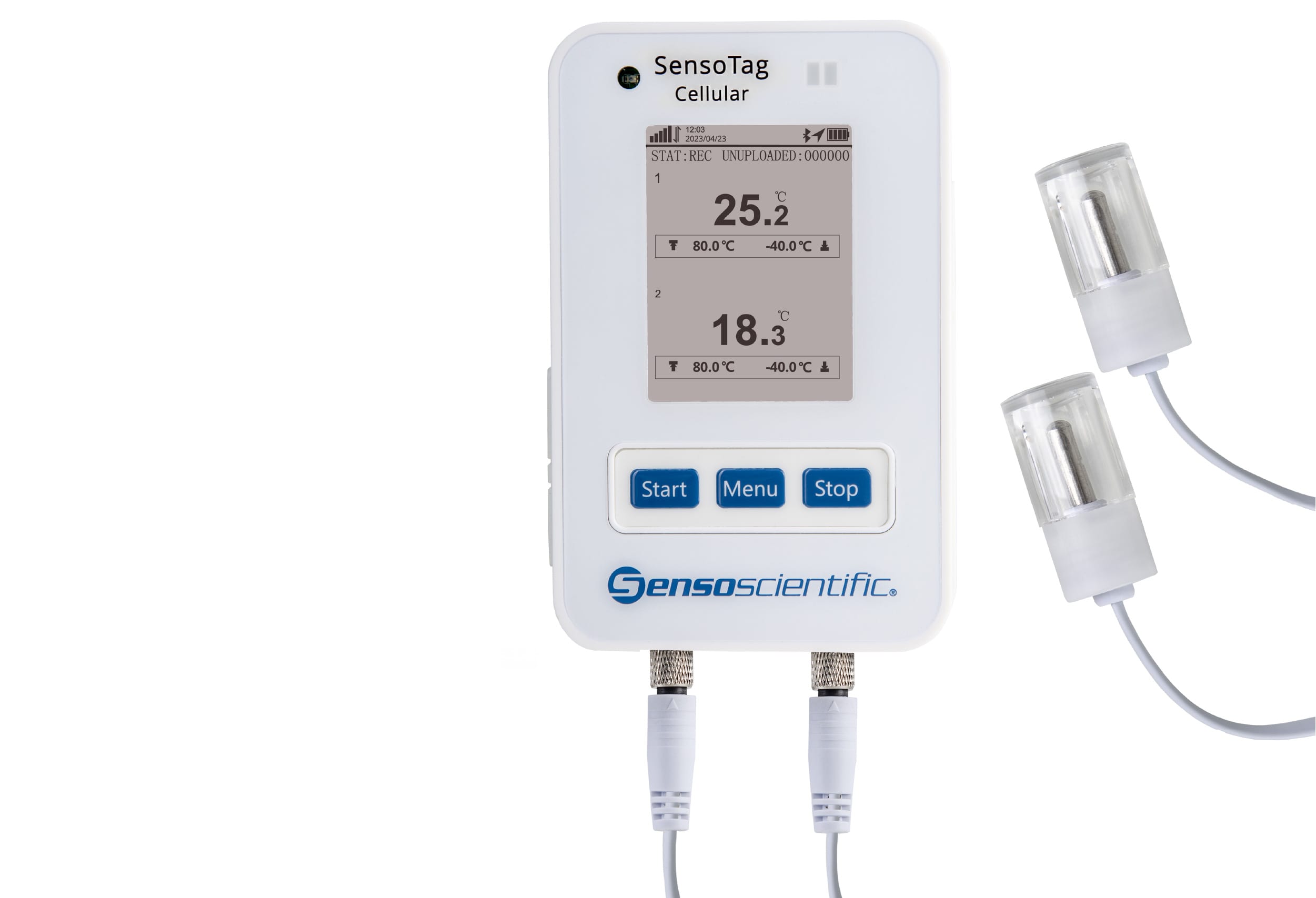

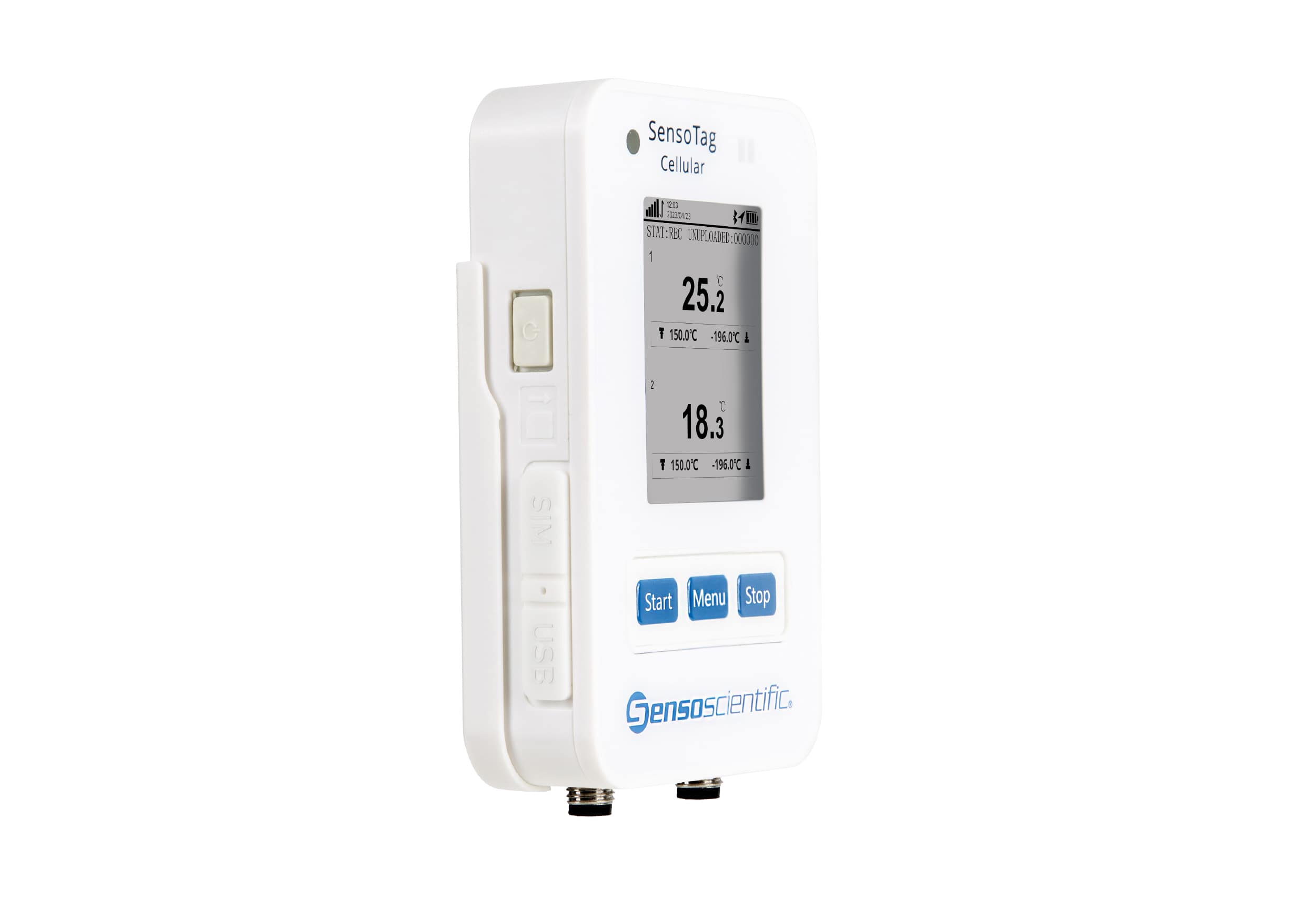

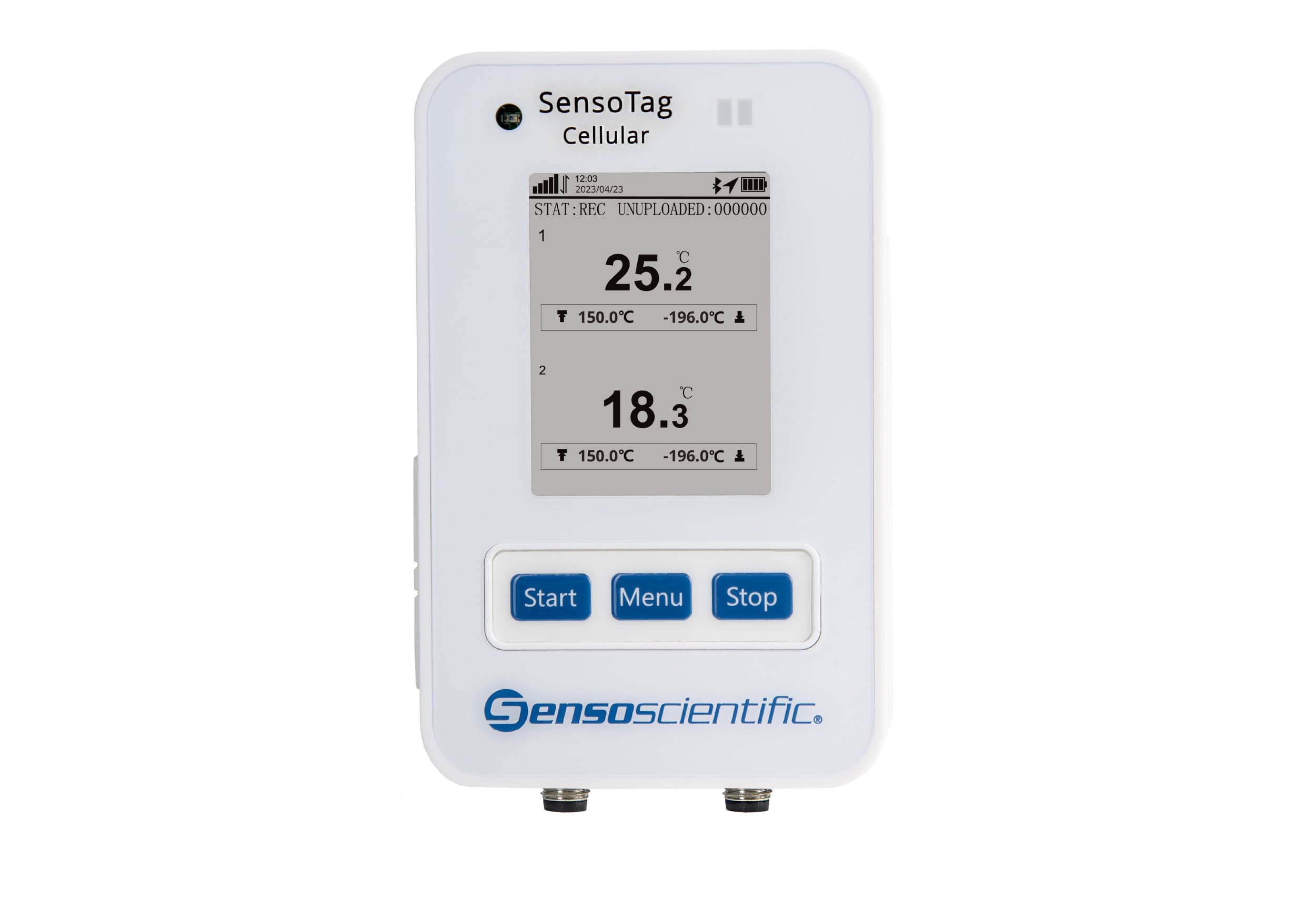

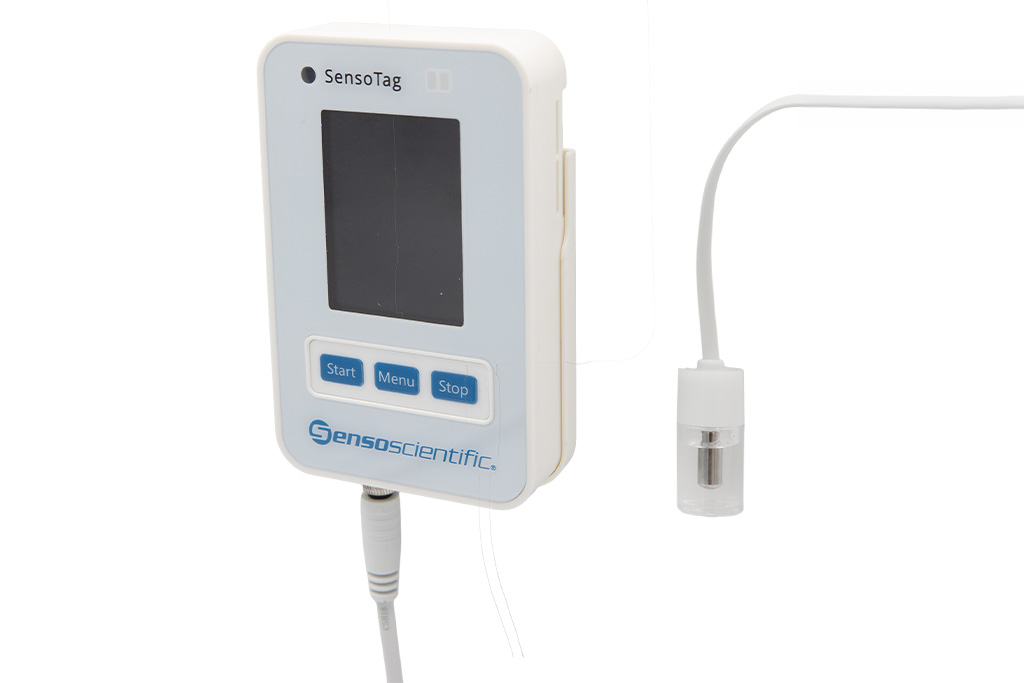

Digital Temperature Sensor ― SensoTag Cellular
SensoTag-C-B11
This in-transit cellular temperature sensor measures digital temperatures between -40°C to 80°C (-40°F to 176°F) and comes equipped with a glycol bottle.
Request a Quote
"*" indicates required fields
Request a Quote
"*" indicates required fields
- Product Description
- Key Features
- Product Specifications
SensoScientific SensoTag Cellular data loggers are in-transit monitoring solutions that provide real-time monitoring, alarming, and reporting using Internet of Things (IoT) and 4G cellular technology. This compact monitoring solution features a large display screen for quick measurement visibility including current, min/max readings as well as battery and connectivity status. Digital temperature sensors are ideal for vaccine temperature monitoring applications in cold chain logistics or high transport situations. SensoTag-C-B11 models com equipped with thermal buffers, audible alarm, and are CDC/VFC approved. Devices store over 100,000 readings locally and unlimited cloud memory, transmitted to the SensoScientific Cloud.
| ● 4G Cellular Connectivity | ● Real-Time Monitoring & Alarming | ● CDC & VFC Compliant |
| ● GPS and LBS Positioning | ● Current, Min, and Max Display | ● Long Battery Life Rechargeable via AC Power |
| ● Ideal for Vaccines, Medicine, and Food | ● Start/Stop Buttons on Device | ● Unlimited Cloud Data Storage |
| ● Audible and Visible Alarms | ● Glycol Bottles Included | ● Large Display Screen |

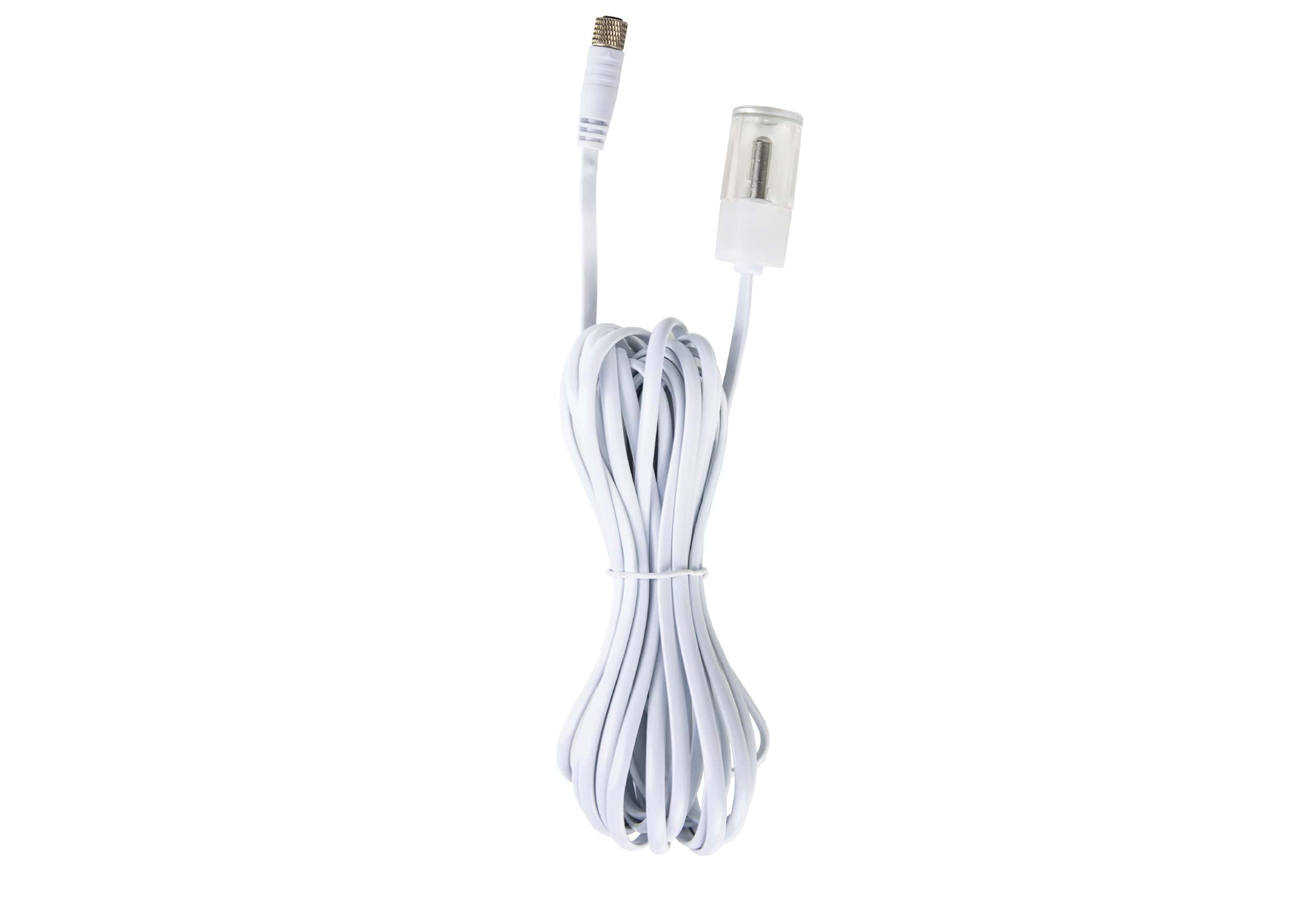

| Sensor Type: | Gel Bottle Temperature Sensor |
| Channel: | One or Two Temperature Probes |
| Dual Temperature Range: | -40°C to 80°C (-40°F to 176°F) |
| Measurement Accuracy: | ±0.5°C |
| Temp. Display Resolution: | 0.1°C |
| Communication Mode: | 4G |
| Positioning: | GPS and LBS |
| Memory: | Unlimited Cloud Memory; On-transmitter Buffer Storage (100,000 Readings) |
| Data Storage Mode: | Circular Storage |
| Normal Recording Interval: | 1 Min to 24 Hr Allowed |
| Alarm Recording Interval: | 1 Min to 24 Hr Allowed (Must Be ≤ Normal Recording Interval) |
| Normal Upload Interval: | 1 Min to 24 Hr Allowed, Defaulted to 5 Min |
| Alarm Upload Interval: | 1 Min to 24 Hr Allowed, Defaulted to 2 Min (Must Be ≥ Alarm Recording Interval) |
| Alarms: | Alarm Indicator Light; Audible Alarm; 24/7 Alert Notifications Through the Cloud |
| Screen: | TFT Color Screen |
| Waterproof Grade: | IP64 |
| Power Input: | 5V/2A (DC) with Charging Indicator Light |
| Battery Life: | ≥ 3 Months (at 25°C, Upload Interval: 30 Min, LBS Positioning) |
| ≥ 14 Days (at 25°C, Upload Interval: 30 Min, LBS + GPS Positioning) | |
| Dimensions: | Height: 4.29″ (109mm) |
| Width: 2.73″ (69.4mm) | |
| Length: 0.9″ (22.9mm) | |
| Certificates: | Device-level Certificates |
Product Description
SensoScientific SensoTag Cellular data loggers are in-transit monitoring solutions that provide real-time monitoring, alarming, and reporting using Internet of Things (IoT) and 4G cellular technology. This compact monitoring solution features a large display screen for quick measurement visibility including current, min/max readings as well as battery and connectivity status. Digital temperature sensors are ideal for vaccine temperature monitoring applications in cold chain logistics or high transport situations. SensoTag-C-B11 models com equipped with thermal buffers, audible alarm, and are CDC/VFC approved. Devices store over 100,000 readings locally and unlimited cloud memory, transmitted to the SensoScientific Cloud.
Key Features
| ● 4G Cellular Connectivity | ● Real-Time Monitoring & Alarming | ● CDC & VFC Compliant |
| ● GPS and LBS Positioning | ● Current, Min, and Max Display | ● Long Battery Life Rechargeable via AC Power |
| ● Ideal for Vaccines, Medicine, and Food | ● Start/Stop Buttons on Device | ● Unlimited Cloud Data Storage |
| ● Audible and Visible Alarms | ● Glycol Bottles Included | ● Large Display Screen |
Product Specifications
| Sensor Type: | Gel Bottle Temperature Sensor |
| Channel: | One or Two Temperature Probes |
| Dual Temperature Range: | -40°C to 80°C (-40°F to 176°F) |
| Measurement Accuracy: | ±0.5°C |
| Temp. Display Resolution: | 0.1°C |
| Communication Mode: | 4G |
| Positioning: | GPS and LBS |
| Memory: | Unlimited Cloud Memory; On-transmitter Buffer Storage (100,000 Readings) |
| Data Storage Mode: | Circular Storage |
| Normal Recording Interval: | 1 Min to 24 Hr Allowed |
| Alarm Recording Interval: | 1 Min to 24 Hr Allowed (Must Be ≤ Normal Recording Interval) |
| Normal Upload Interval: | 1 Min to 24 Hr Allowed, Defaulted to 5 Min |
| Alarm Upload Interval: | 1 Min to 24 Hr Allowed, Defaulted to 2 Min (Must Be ≥ Alarm Recording Interval) |
| Alarms: | Alarm Indicator Light; Audible Alarm; 24/7 Alert Notifications Through the Cloud |
| Screen: | TFT Color Screen |
| Waterproof Grade: | IP64 |
| Power Input: | 5V/2A (DC) with Charging Indicator Light |
| Battery Life: | ≥ 3 Months (at 25°C, Upload Interval: 30 Min, LBS Positioning) |
| ≥ 14 Days (at 25°C, Upload Interval: 30 Min, LBS + GPS Positioning) | |
| Dimensions: | Height: 4.29″ (109mm) |
| Width: 2.73″ (69.4mm) | |
| Length: 0.9″ (22.9mm) | |
| Certificates: | Device-level Certificates |
How It Works
SensoTag Cellular
Data Loggers use 4G cellular connectivity to upload trip data to the SensoScientific Cloud.
24/7 Alert Notifications
The cloud sends real-time notifications when readings fall outside range.
Comprehensive Reporting
Access trip reports through the cloud to validate temperatures and meet compliance.
