RTD Temperature Sensor ― SensoTag Cellular

SensoTag-C-B80

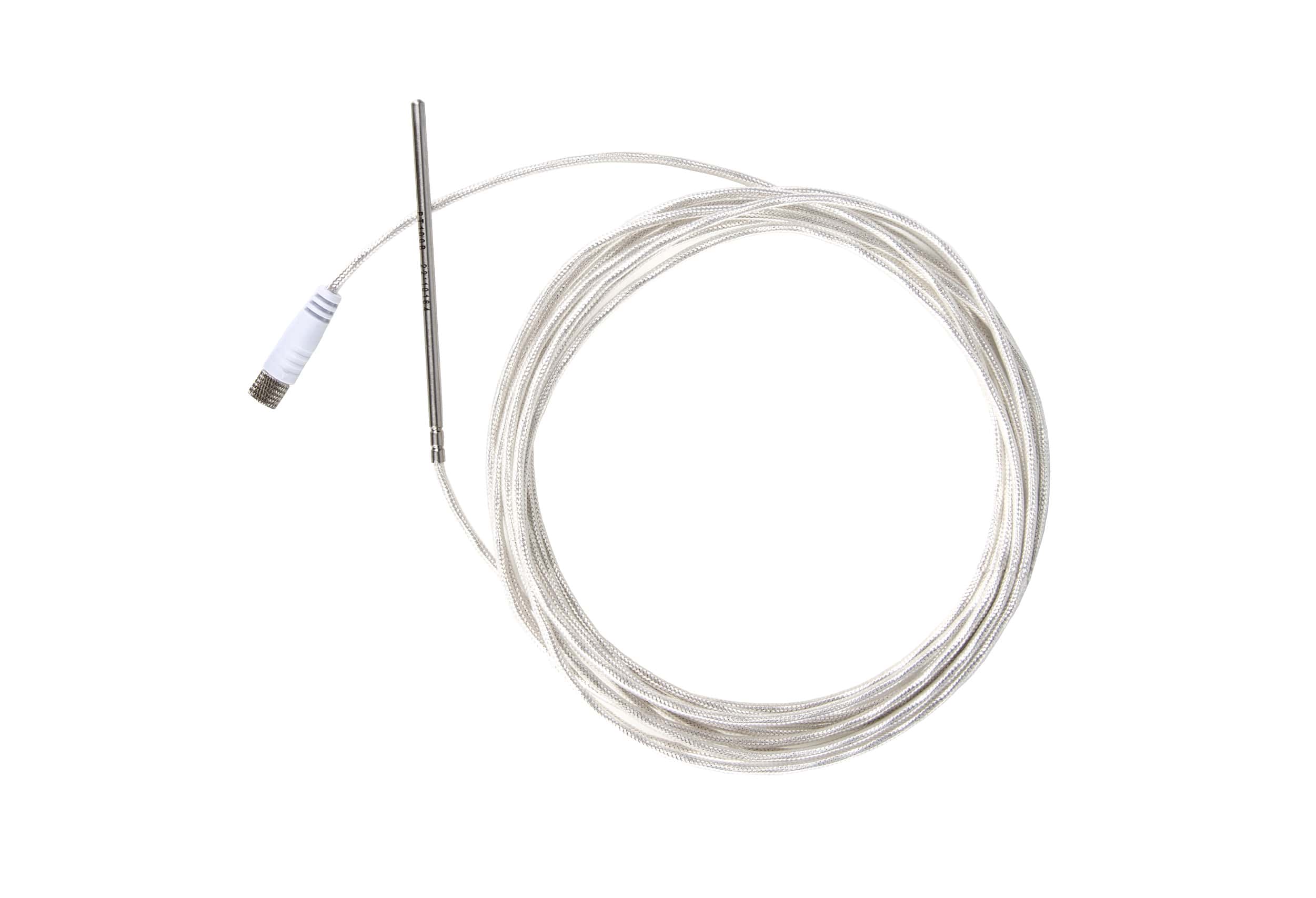

This in-transit cellular temperature sensor measures ultra-low RTD temperatures between -196°C to 150°C (-320°F to 302°F).

ultra low cellular sensor
ultra low cellular temperature sensor
Sensoscientific ultra low sensor for transportation
cellular temperature sensor
In transit temperature sensor
ultra low temperature probe for transportation
  • ultra low cellular sensor
  • ultra low cellular temperature sensor
  • Sensoscientific ultra low sensor for transportation
  • cellular temperature sensor
  • In transit temperature sensor
  • ultra low temperature probe for transportation

Request Pricing and Information

"*" indicates required fields

Name*
Are you interested in a free trial?
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
This field is for validation purposes and should be left unchanged.

Request Pricing and Information

"*" indicates required fields

Name*
Are you interested in a free trial?
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
This field is for validation purposes and should be left unchanged.
  • Product Description
  • Key Features
  • Product Specifications

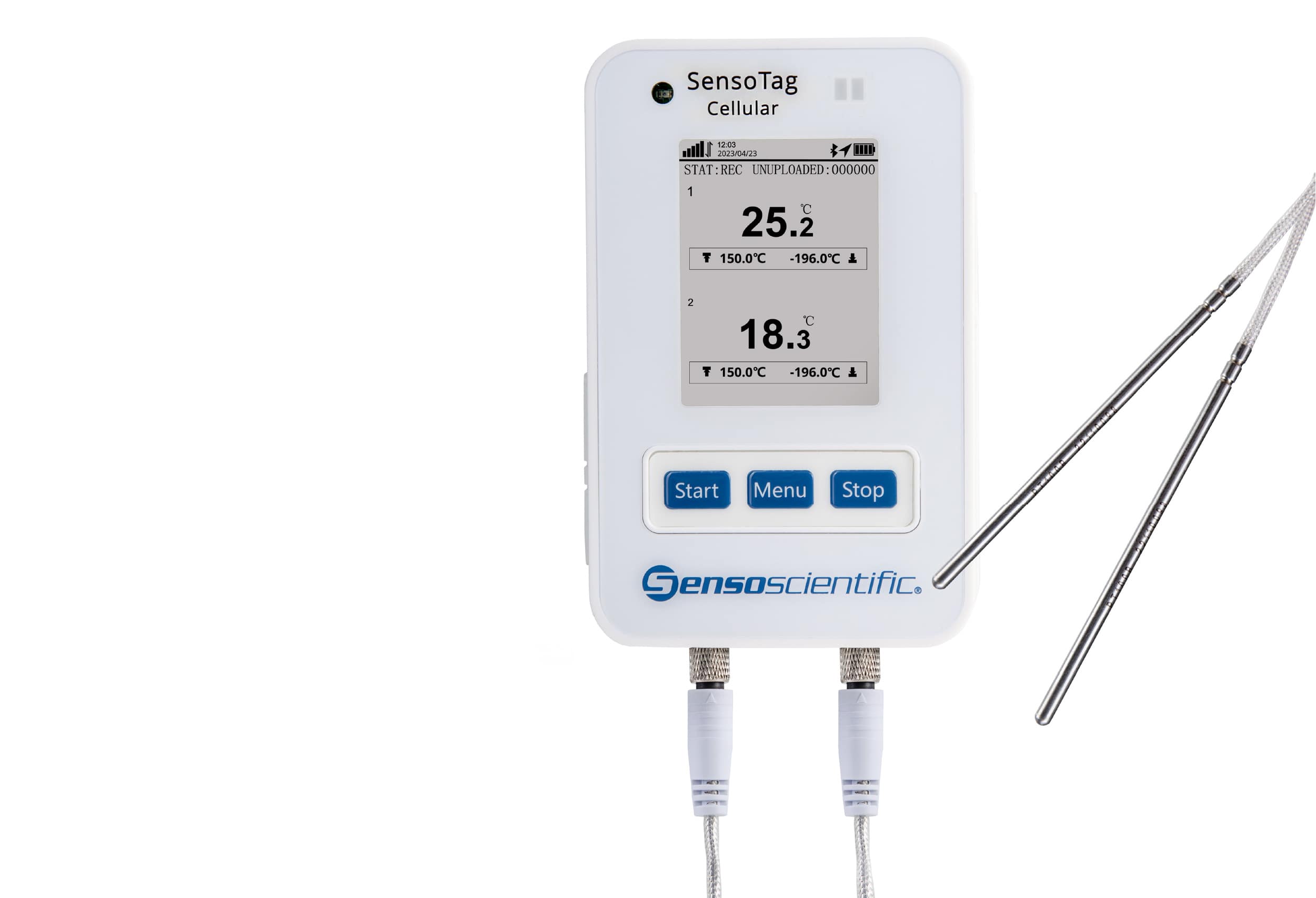

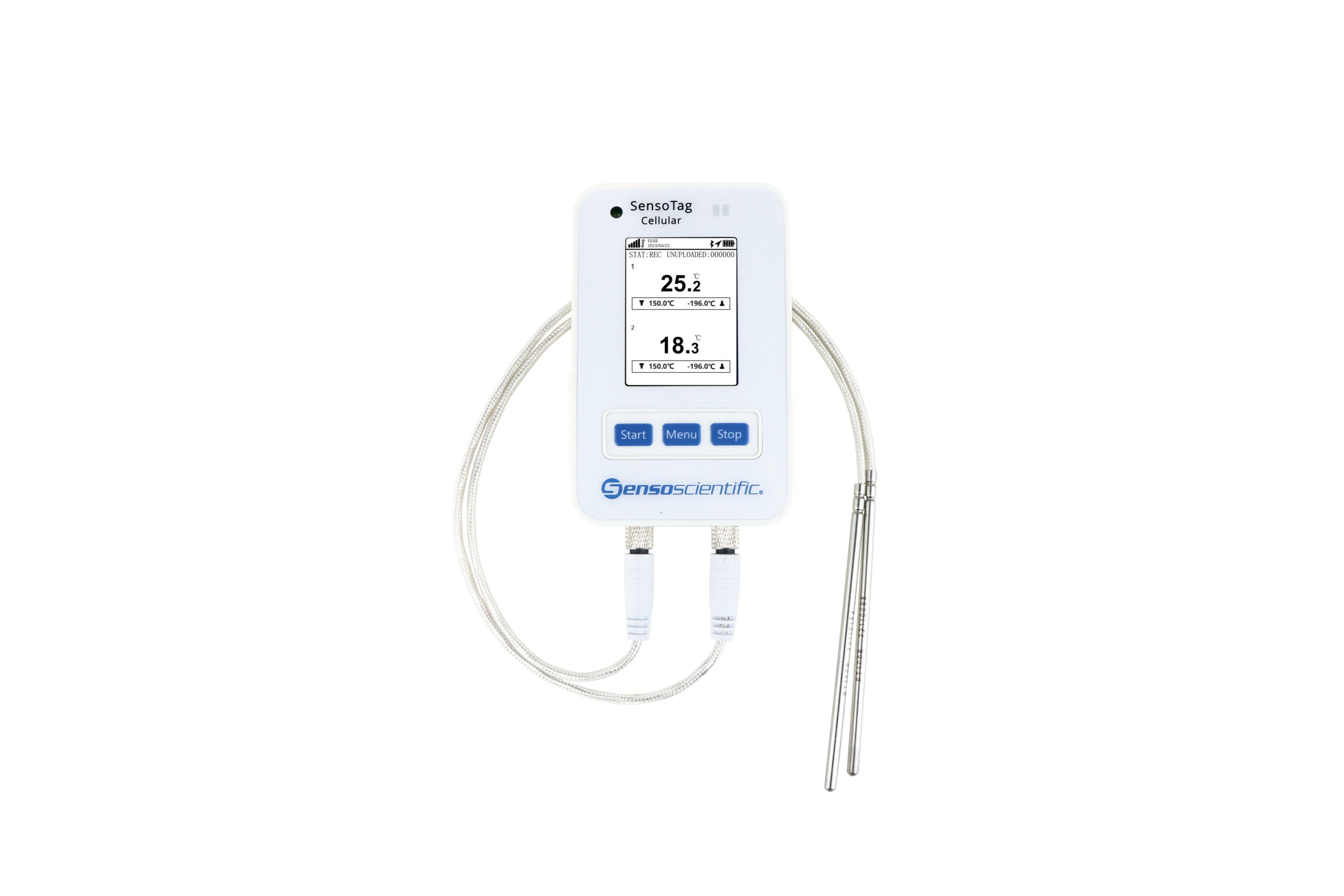

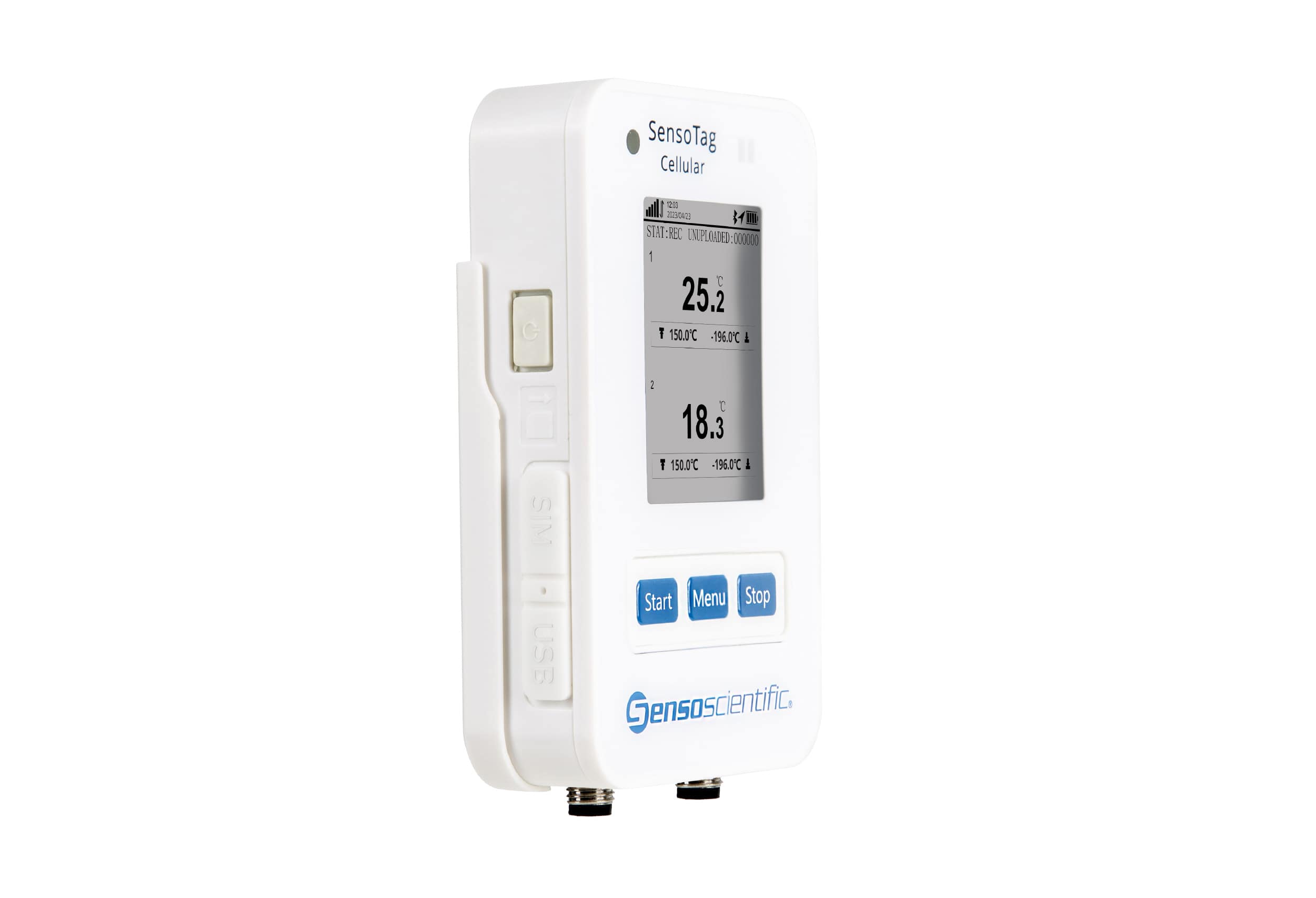

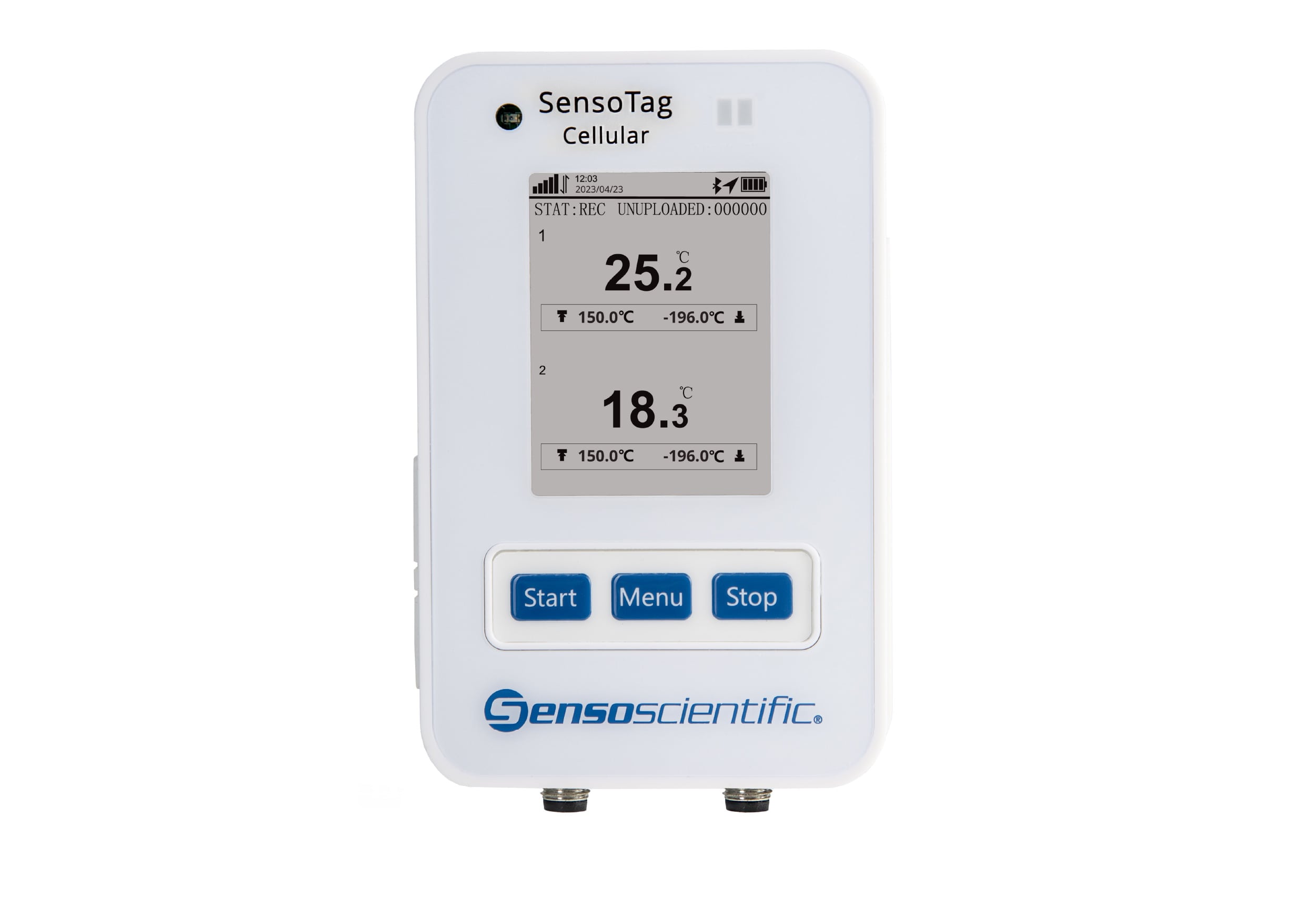

SensoScientific SensoTag Cellular data loggers are in-transit monitoring solutions that provide real-time monitoring, alarming, and reporting using Internet of Things (IoT) and 4G cellular technology. This compact monitoring solution features a large display screen for quick measurement visibility including current, min/max readings as well as battery and connectivity status. RTD temperature sensors are ideal for monitoring ultra low temperature applications in cold chain logistics and high transport situations. Devices store over 100,000 readings locally and unlimited cloud memory, transmitted to the SensoScientific Cloud.

●  4G Cellular Connectivity ●   Real-Time Monitoring & Alarming ●  CDC & VFC Compliant
●  GPS and LBS Positioning ●  Current, Min, and Max Display ●  Long Battery Life Rechargeable via AC Power
●  Ideal for Vaccines, Medicine, and Food ●  Start/Stop Buttons on Device ●  Unlimited Cloud Data Storage
●  Audible and Visible Alarms ●  Glycol Bottles Included ●  Large Display Screen
Sensor Type: Ultra Low Temperature Sensor
Channel: One or Two Temperature Probes
Dual Temperature Range: -196°C to 1500°C (-320.8°F to 302°F)
Measurement Accuracy: ±0.3°C (-20°C to 40°C); ±0.5°C (-50°C to 85°C); ±1°C (-100°C to 150°C); ±2°C (others)
Temp. Display Resolution: 0.1°C
Communication Mode: 4G
Positioning: GPS and LBS
Memory: Unlimited Cloud Memory; On-transmitter Buffer Storage (100,000 Readings)
Data Storage Mode: Circular Storage
Normal Recording Interval: 1 Min to 24 Hr Allowed
Alarm Recording Interval: 1 Min to 24 Hr Allowed (Must Be ≤ Normal Recording Interval)
Normal Upload Interval: 1 Min to 24 Hr Allowed, Defaulted to 5 Min
Alarm Upload Interval: 1 Min to 24 Hr Allowed, Defaulted to 2 Min (Must Be ≥ Alarm Recording Interval)
Alarms: Alarm Indicator Light; Audible Alarm; 24/7 Alert Notifications Through the Cloud
Screen: TFT Color Screen
Waterproof Grade: IP64
Power Input: 5V/2A (DC) with Charging Indicator Light
Battery Life: ≥ 3 Months (at 25°C, Upload Interval: 30 Min, LBS Positioning)
≥ 14 Days (at 25°C, Upload Interval: 30 Min, LBS + GPS Positioning)
Dimensions: Height: 4.29″ (109mm)
Width: 2.73″ (69.4mm)
Length: 0.9″ (22.9mm)
Certificates: Device-level Certificates

Product Description

SensoScientific SensoTag Cellular data loggers are in-transit monitoring solutions that provide real-time monitoring, alarming, and reporting using Internet of Things (IoT) and 4G cellular technology. This compact monitoring solution features a large display screen for quick measurement visibility including current, min/max readings as well as battery and connectivity status. RTD temperature sensors are ideal for monitoring ultra low temperature applications in cold chain logistics and high transport situations. Devices store over 100,000 readings locally and unlimited cloud memory, transmitted to the SensoScientific Cloud.

Key Features

●  4G Cellular Connectivity ●   Real-Time Monitoring & Alarming ●  CDC & VFC Compliant
●  GPS and LBS Positioning ●  Current, Min, and Max Display ●  Long Battery Life Rechargeable via AC Power
●  Ideal for Vaccines, Medicine, and Food ●  Start/Stop Buttons on Device ●  Unlimited Cloud Data Storage
●  Audible and Visible Alarms ●  Glycol Bottles Included ●  Large Display Screen

Product Specifications

Sensor Type: Ultra Low Temperature Sensor
Channel: One or Two Temperature Probes
Dual Temperature Range: -196°C to 1500°C (-320.8°F to 302°F)
Measurement Accuracy: ±0.3°C (-20°C to 40°C); ±0.5°C (-50°C to 85°C); ±1°C (-100°C to 150°C); ±2°C (others)
Temp. Display Resolution: 0.1°C
Communication Mode: 4G
Positioning: GPS and LBS
Memory: Unlimited Cloud Memory; On-transmitter Buffer Storage (100,000 Readings)
Data Storage Mode: Circular Storage
Normal Recording Interval: 1 Min to 24 Hr Allowed
Alarm Recording Interval: 1 Min to 24 Hr Allowed (Must Be ≤ Normal Recording Interval)
Normal Upload Interval: 1 Min to 24 Hr Allowed, Defaulted to 5 Min
Alarm Upload Interval: 1 Min to 24 Hr Allowed, Defaulted to 2 Min (Must Be ≥ Alarm Recording Interval)
Alarms: Alarm Indicator Light; Audible Alarm; 24/7 Alert Notifications Through the Cloud
Screen: TFT Color Screen
Waterproof Grade: IP64
Power Input: 5V/2A (DC) with Charging Indicator Light
Battery Life: ≥ 3 Months (at 25°C, Upload Interval: 30 Min, LBS Positioning)
≥ 14 Days (at 25°C, Upload Interval: 30 Min, LBS + GPS Positioning)
Dimensions: Height: 4.29″ (109mm)
Width: 2.73″ (69.4mm)
Length: 0.9″ (22.9mm)
Certificates: Device-level Certificates

How It Works

in transit cellular temperature monitoring by SensoScientific

SensoTag Cellular

Data Loggers use 4G cellular connectivity to upload trip data to the SensoScientific Cloud.

24/7 Alert Notifications

The cloud sends real-time notifications when readings fall outside range.

Comprehensive Reporting

Access trip reports through the cloud to validate temperatures and meet compliance.
