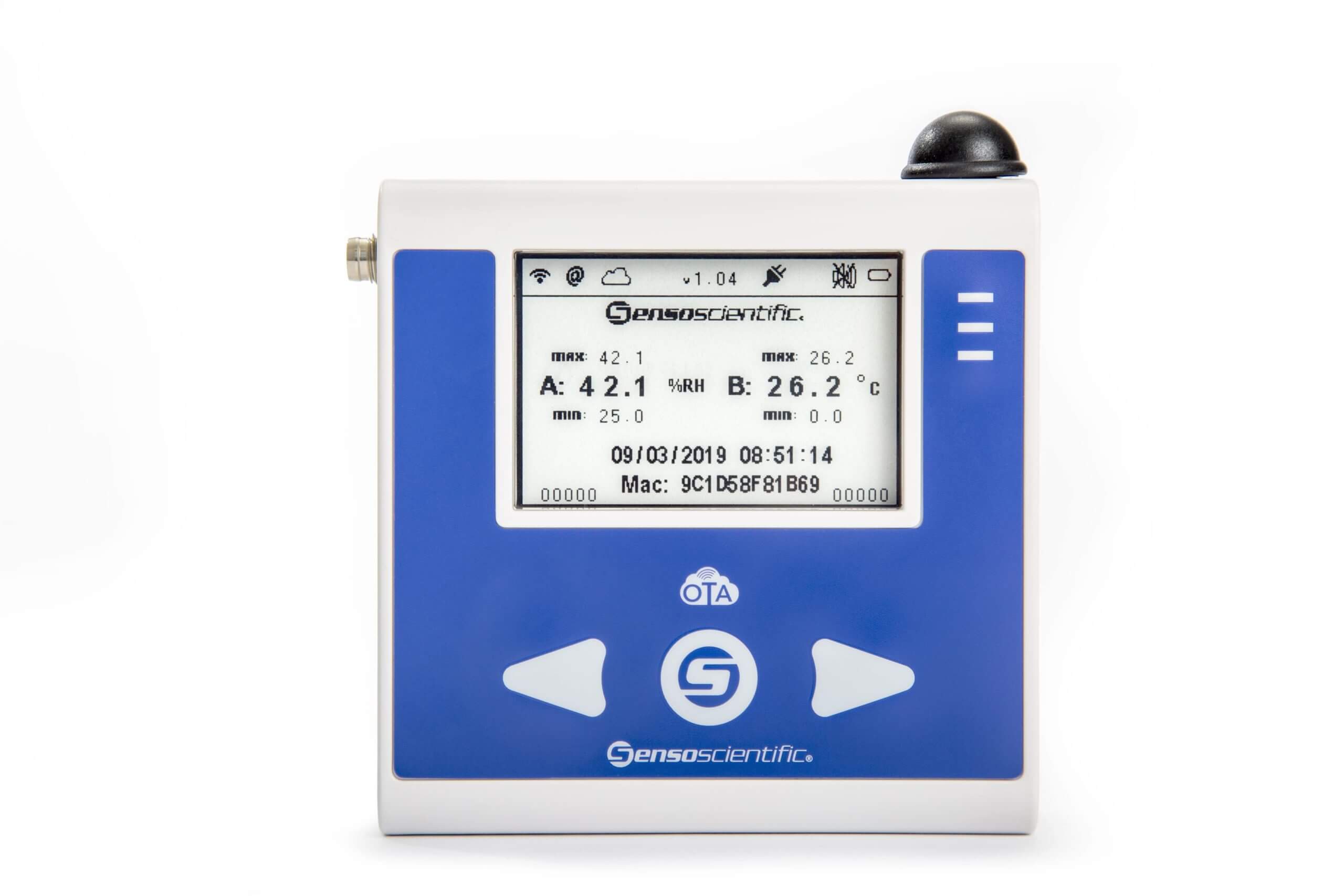

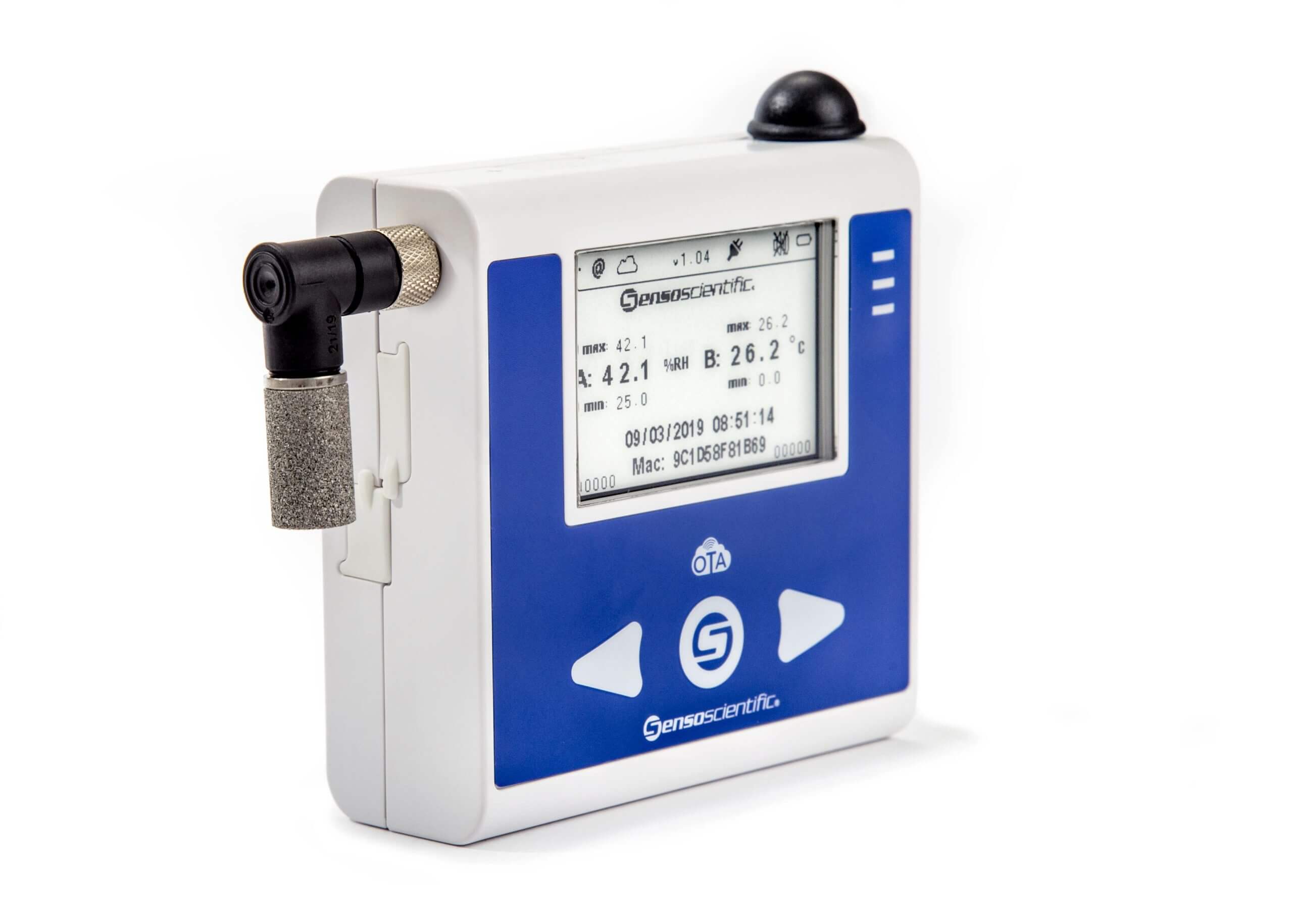

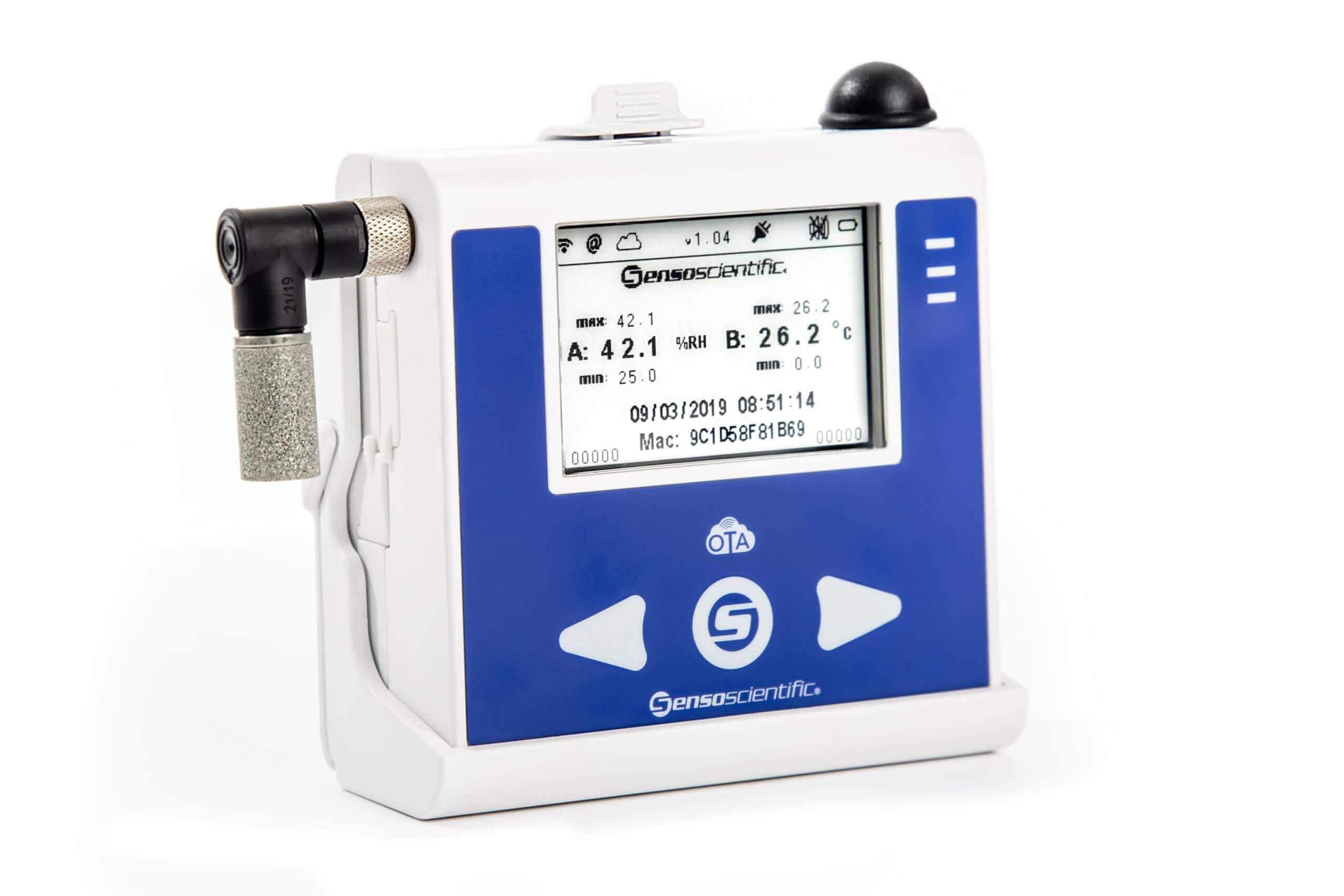

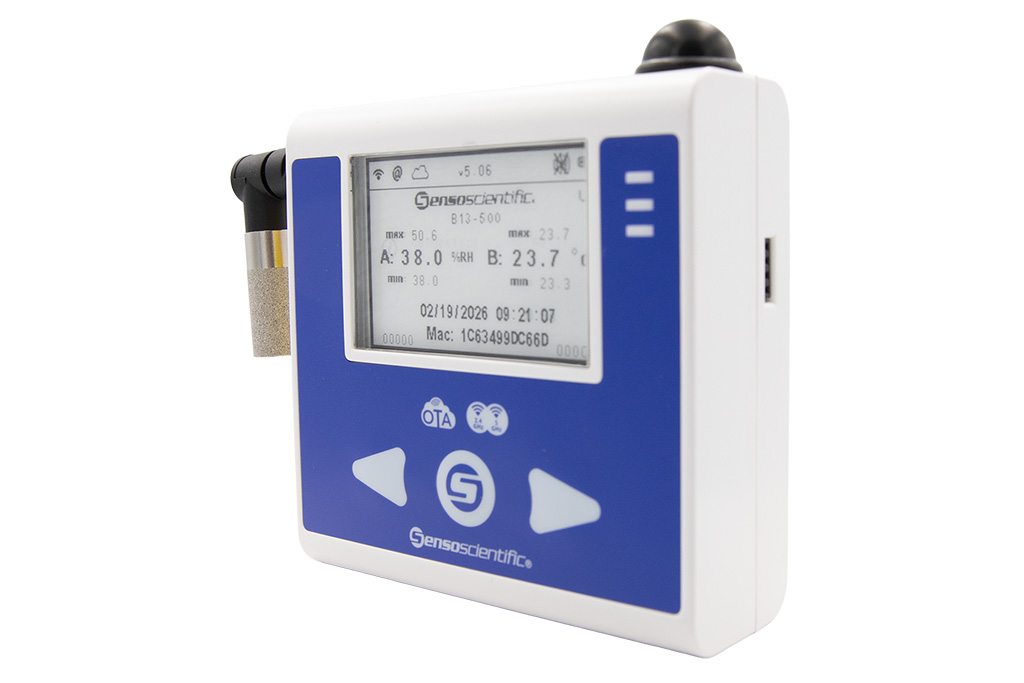

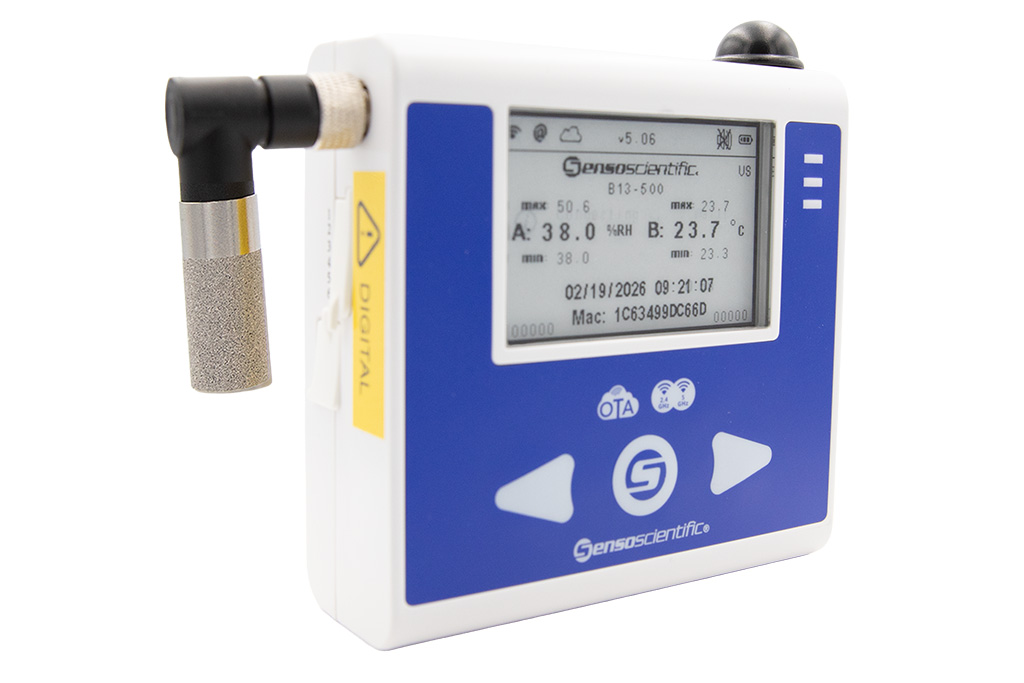

Temperature & Humidity Sensor ― Wi-Fi OTA

B13-200-OTA, B13-500-OTA

Monitor ambient temperature and humidity up to 125°C and 100% RH. Available in both single-band (2.4 GHz) and dual-band (2.4 GHz / 5 GHz) connectivity.

Temperature & Humidity Sensor ― Wi-Fi OTA
Temperature & Humidity Sensor ― Wi-Fi OTA
Temperature & Humidity Sensor ― Wi-Fi OTA
Temperature & Humidity Sensor ― Wi-Fi OTA
Temperature & Humidity Sensor ― Wi-Fi OTA
  • Temperature & Humidity Sensor ― Wi-Fi OTA
  • Temperature & Humidity Sensor ― Wi-Fi OTA
  • Temperature & Humidity Sensor ― Wi-Fi OTA
  • Temperature & Humidity Sensor ― Wi-Fi OTA
  • Temperature & Humidity Sensor ― Wi-Fi OTA

Request Pricing and Information

"*" indicates required fields

Name*
Are you interested in a free trial?
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is for validation purposes and should be left unchanged.

Request Pricing and Information

"*" indicates required fields

Name*
Are you interested in a free trial?
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is for validation purposes and should be left unchanged.
  • Product Description
  • Key Features
  • Product Specifications

SensoScientific Wi-Fi transmitters are high speed wireless modules with PEAPv0 enterprise security, capable of collecting, storing, and transmitting data wirelessly over a standard 802.11 b/g/n (Wi-Fi – RF Frequency 2.4 to 2.497 GHz) with TCP protocol. The transmitter passes information to a standard access point which can be accessed by any Wi-Fi enabled network. Each transmitter monitors against preset conditions that are defined by the user. Additional alerts can be provided through a variety of methods such as SMS, text message, voice, pager, cell phone, fax, and e-mail. Information recorded in PPB or PPM to the database is time-stamped and cannot be altered through the user interface.

●  Onboard, Low Power E-Ink Display ●  Push Button for Real-Time Readings ●  Dual Power ― Battery & AC
●  True Embedded Wi-Fi Solution ●  NIST & A2LA Accredited SNAP Calibration ●  Enterprise-Wide Scalability
●  Device-Level Certificates ●  Multi-LED for Connectivity Status ●  FIPS Compliant Validated Cloud
●  FDA 21 CFR Part 11 Compliant ●  Lowest Total Cost of Ownership ●  No Proprietary Software
Temperature Range: -40°C to 125°C (-40°F to 257°F)
Humidity Range: 0% RH to 100% RH
Standard Calibration Point: 35°C
Accuracy: ±0.5°C (0°C to 60°C); ±3% RH (0% RH to 90% RH)
Ambient Operating Range: 0°C to 75°C (32°F to 167°F); Up to 95% RH
Memory: Unlimited Cloud Memory; On-transmitter Buffer Storage (4000 Readings)
Alarms: Onboard Visual and Audible Alarms; 24/7 Alert Notifications through the Cloud
RF Frequency: 2.4 to 2.497 GHz
Radio Protocol: IEEE802.11 b/g/n Compatible 54Mbit/sec
Enterprise Security: PEAPv0 with EAP-MSCAPv2 (PEAP)
Housing: ABS Plastic Enclosure with Silicon Rubber Covers and Open Ports
Mounting: Zip Tie Mount Hooked with Screw Holster Wall Mount
Power Supply: (4) 1.5V AA Batteries (Lithium or Alkaline); Optional ― AC/DC Power Supply (UL Certified)
Battery Life: 1 Year
Dimensions: Height: 4.25″ (108mm)
Width: 3.88″ (98mm)
Length: 1.38″ (35mm)
LDAP: Single Sign-on Capability
Certificates: Device-level Certificates
Warranty: 3-Year Warranty

Product Description

SensoScientific Wi-Fi transmitters are high speed wireless modules with PEAPv0 enterprise security, capable of collecting, storing, and transmitting data wirelessly over a standard 802.11 b/g/n (Wi-Fi – RF Frequency 2.4 to 2.497 GHz) with TCP protocol. The transmitter passes information to a standard access point which can be accessed by any Wi-Fi enabled network. Each transmitter monitors against preset conditions that are defined by the user. Additional alerts can be provided through a variety of methods such as SMS, text message, voice, pager, cell phone, fax, and e-mail. Information recorded in PPB or PPM to the database is time-stamped and cannot be altered through the user interface.

Key Features

●  Onboard, Low Power E-Ink Display ●  Push Button for Real-Time Readings ●  Dual Power ― Battery & AC
●  True Embedded Wi-Fi Solution ●  NIST & A2LA Accredited SNAP Calibration ●  Enterprise-Wide Scalability
●  Device-Level Certificates ●  Multi-LED for Connectivity Status ●  FIPS Compliant Validated Cloud
●  FDA 21 CFR Part 11 Compliant ●  Lowest Total Cost of Ownership ●  No Proprietary Software

Product Specifications

Temperature Range: -40°C to 125°C (-40°F to 257°F)
Humidity Range: 0% RH to 100% RH
Standard Calibration Point: 35°C
Accuracy: ±0.5°C (0°C to 60°C); ±3% RH (0% RH to 90% RH)
Ambient Operating Range: 0°C to 75°C (32°F to 167°F); Up to 95% RH
Memory: Unlimited Cloud Memory; On-transmitter Buffer Storage (4000 Readings)
Alarms: Onboard Visual and Audible Alarms; 24/7 Alert Notifications through the Cloud
RF Frequency: 2.4 to 2.497 GHz
Radio Protocol: IEEE802.11 b/g/n Compatible 54Mbit/sec
Enterprise Security: PEAPv0 with EAP-MSCAPv2 (PEAP)
Housing: ABS Plastic Enclosure with Silicon Rubber Covers and Open Ports
Mounting: Zip Tie Mount Hooked with Screw Holster Wall Mount
Power Supply: (4) 1.5V AA Batteries (Lithium or Alkaline); Optional ― AC/DC Power Supply (UL Certified)
Battery Life: 1 Year
Dimensions: Height: 4.25″ (108mm)
Width: 3.88″ (98mm)
Length: 1.38″ (35mm)
LDAP: Single Sign-on Capability
Certificates: Device-level Certificates
Warranty: 3-Year Warranty

How It Works

Wireless Sensor

Data Loggers use Wi-Fi to upload data to the SensoScientific Cloud for immediate use.

SensoScientific Cloud

From the cloud, you can customize node settings, generate reports, and more.

24/7 Alert Notifications

The cloud sends real-time notifications when readings fall outside range.
