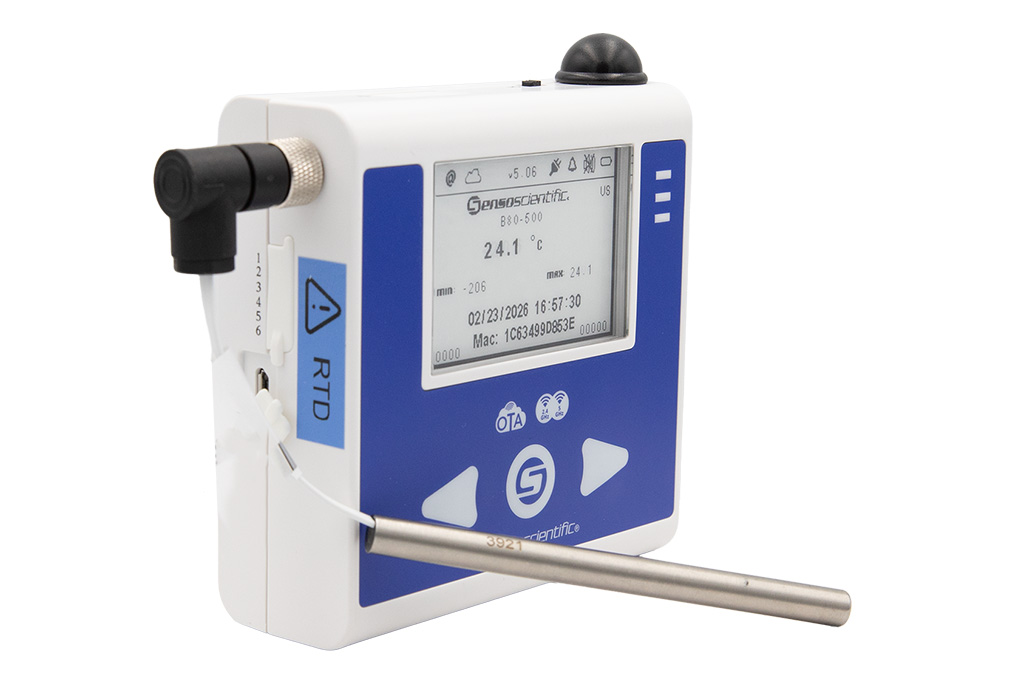

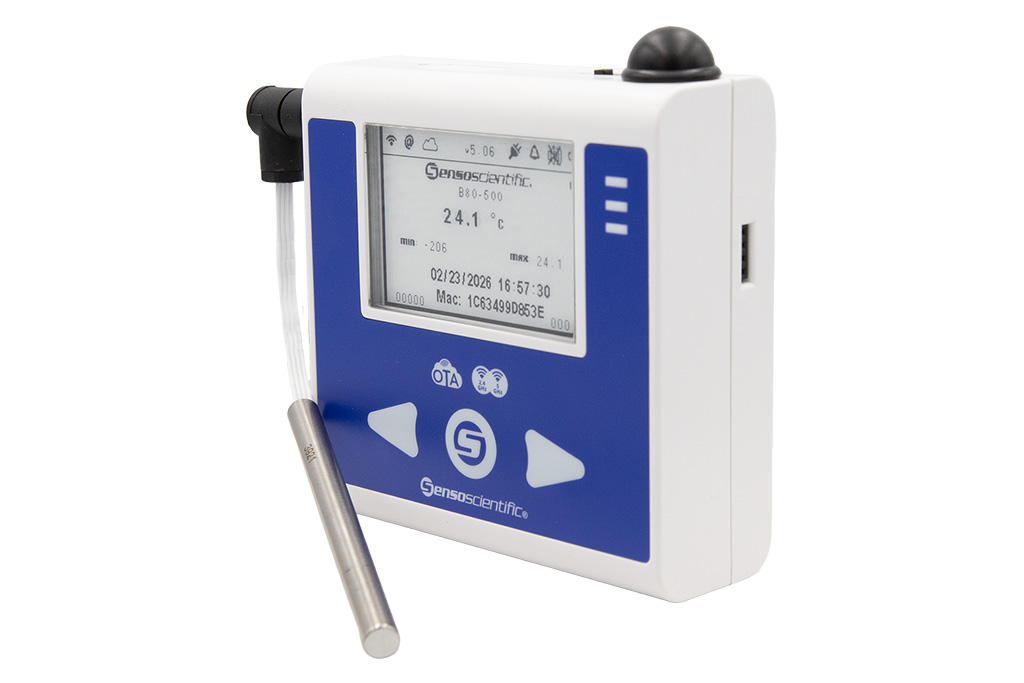

RTD Temperature Sensor ― Wi-Fi OTA

Utilize wireless OTA technology and monitor temperatures between -200°C to 200°C (328°F to 392°F) for every application.

Request a Quote

"*" indicates required fields

Are you interested in a free trial?

Request a Quote

"*" indicates required fields

Are you interested in a free trial?
  • Product Description
  • Key Features
  • Product Specifications

SensoScientific Wi-Fi transmitters are high speed wireless modules with PEAPv0 enterprise security, capable of collecting, storing, and transmitting data wirelessly over a standard 802.11 b/g/n (Wi-Fi – RF Frequency 2.4 to 2.497 GHz) with TCP protocol. The transmitter passes information to a standard access point which can be accessed by any Wi-Fi enabled network. Each transmitter monitors against preset conditions that are defined by the user. Additional alerts can be provided through a variety of methods such as SMS, text message, voice, pager, cell phone, fax, and e-mail. Information recorded in PPB or PPM to the database is time-stamped and cannot be altered through the user interface.

●  Onboard, Low Power E-Ink Display ●  Push Button for Real-Time Readings ●  Dual Power ― Battery & AC
●  True Embedded Wi-Fi Solution ●  NIST & A2LA Accredited SNAP Calibration ●  Enterprise-Wide Scalability
●  Device-Level Certificates ●  Multi-LED for Connectivity Status ●  FIPS Compliant Validated Cloud
●  FDA 21 CFR Part 11 Compliant ●  Lowest Total Cost of Ownership ●  No Proprietary Software
Temperature Range: -200°C to 200°C (328°F to 392°F)
Accuracy: ±0.5°C
Ambient Operating Range: 0°C to 75°C (32°F to 167°F); Up to 95% RH
Memory: Unlimited Cloud Memory; On-transmitter Buffer Storage (4000 Readings)
Alarms: Onboard Visual and Audible Alarms; 24/7 Alert Notifications through the Cloud
RF Frequency: 2.4 to 2.497 GHz
Radio Protocol: IEEE802.11 b/g/n Compatible 54Mbit/sec
Enterprise Security: PEAPv0 with EAP-MSCAPv2 (PEAP)
Housing: ABS Plastic Enclosure with Silicon Rubber Covers and Open Ports
Mounting: Zip Tie Mount Hooked with Screw Holster Wall Mount
Power Supply: (4) 1.5V AA Batteries (Lithium or Alkaline); Optional ― AC/DC Power Supply (UL Certified)
Battery Life: 1 Year
Dimensions: Height: 4.25″ (108mm)
Width: 3.88″ (98mm)
Length: 1.38″ (35mm)
LDAP: Single Sign-on Capability
Certificates: Device-level Certificates
Warranty: 3-Year Warranty

Product Description

SensoScientific Wi-Fi transmitters are high speed wireless modules with PEAPv0 enterprise security, capable of collecting, storing, and transmitting data wirelessly over a standard 802.11 b/g/n (Wi-Fi – RF Frequency 2.4 to 2.497 GHz) with TCP protocol. The transmitter passes information to a standard access point which can be accessed by any Wi-Fi enabled network. Each transmitter monitors against preset conditions that are defined by the user. Additional alerts can be provided through a variety of methods such as SMS, text message, voice, pager, cell phone, fax, and e-mail. Information recorded in PPB or PPM to the database is time-stamped and cannot be altered through the user interface.

Key Features

●  Onboard, Low Power E-Ink Display ●  Push Button for Real-Time Readings ●  Dual Power ― Battery & AC
●  True Embedded Wi-Fi Solution ●  NIST & A2LA Accredited SNAP Calibration ●  Enterprise-Wide Scalability
●  Device-Level Certificates ●  Multi-LED for Connectivity Status ●  FIPS Compliant Validated Cloud
●  FDA 21 CFR Part 11 Compliant ●  Lowest Total Cost of Ownership ●  No Proprietary Software

Product Specifications

Temperature Range: -200°C to 200°C (328°F to 392°F)
Accuracy: ±0.5°C
Ambient Operating Range: 0°C to 75°C (32°F to 167°F); Up to 95% RH
Memory: Unlimited Cloud Memory; On-transmitter Buffer Storage (4000 Readings)
Alarms: Onboard Visual and Audible Alarms; 24/7 Alert Notifications through the Cloud
RF Frequency: 2.4 to 2.497 GHz
Radio Protocol: IEEE802.11 b/g/n Compatible 54Mbit/sec
Enterprise Security: PEAPv0 with EAP-MSCAPv2 (PEAP)
Housing: ABS Plastic Enclosure with Silicon Rubber Covers and Open Ports
Mounting: Zip Tie Mount Hooked with Screw Holster Wall Mount
Power Supply: (4) 1.5V AA Batteries (Lithium or Alkaline); Optional ― AC/DC Power Supply (UL Certified)
Battery Life: 1 Year
Dimensions: Height: 4.25″ (108mm)
Width: 3.88″ (98mm)
Length: 1.38″ (35mm)
LDAP: Single Sign-on Capability
Certificates: Device-level Certificates
Warranty: 3-Year Warranty

How It Works

Wireless Sensor

Data Loggers use Wi-Fi to upload data to the SensoScientific Cloud for immediate use.

SensoScientific Cloud

From the cloud, you can customize node settings, generate reports, and more.

24/7 Alert Notifications

The cloud sends real-time notifications when readings fall outside range.
