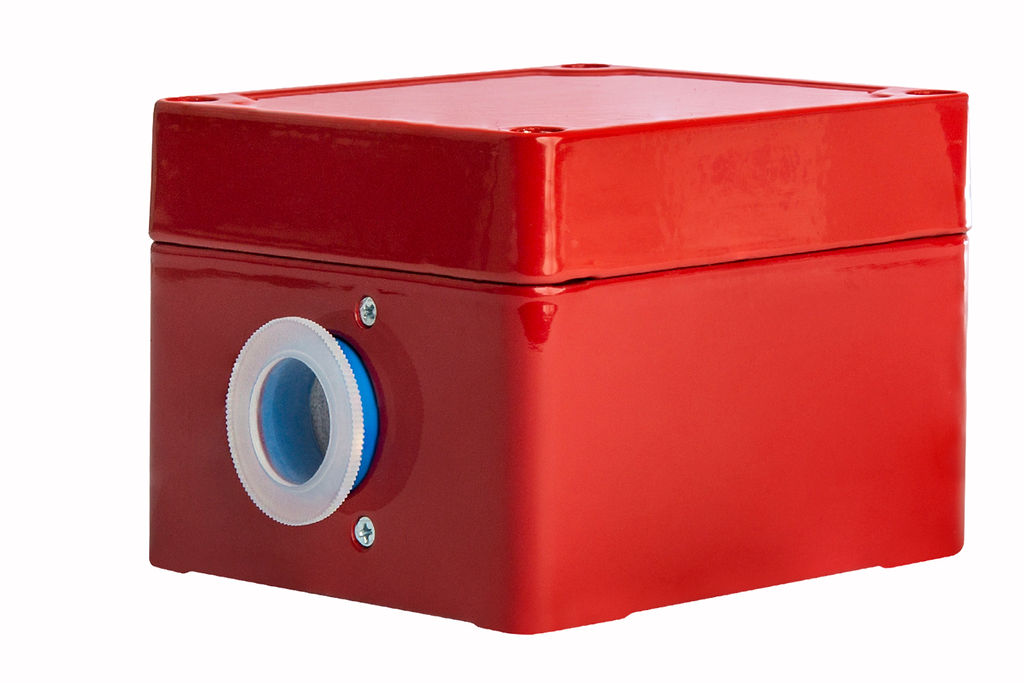

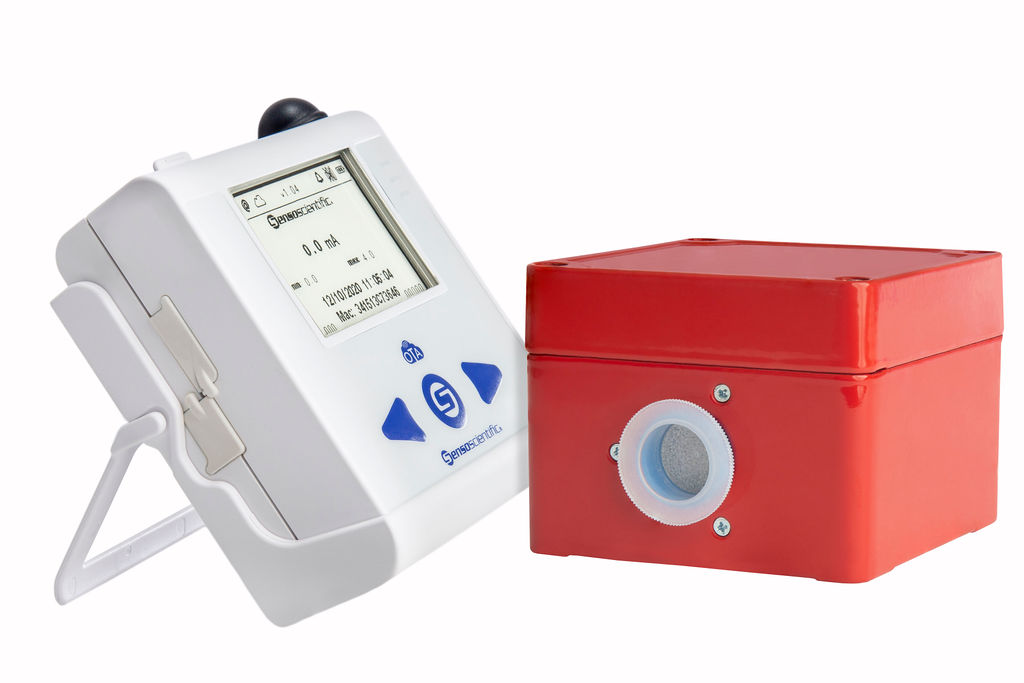

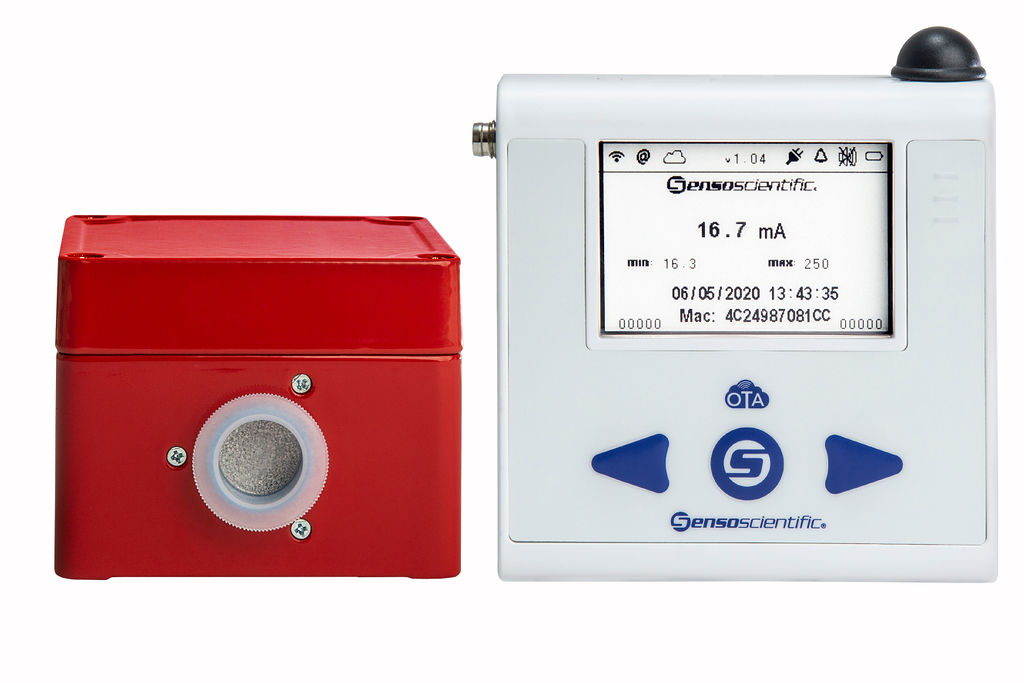

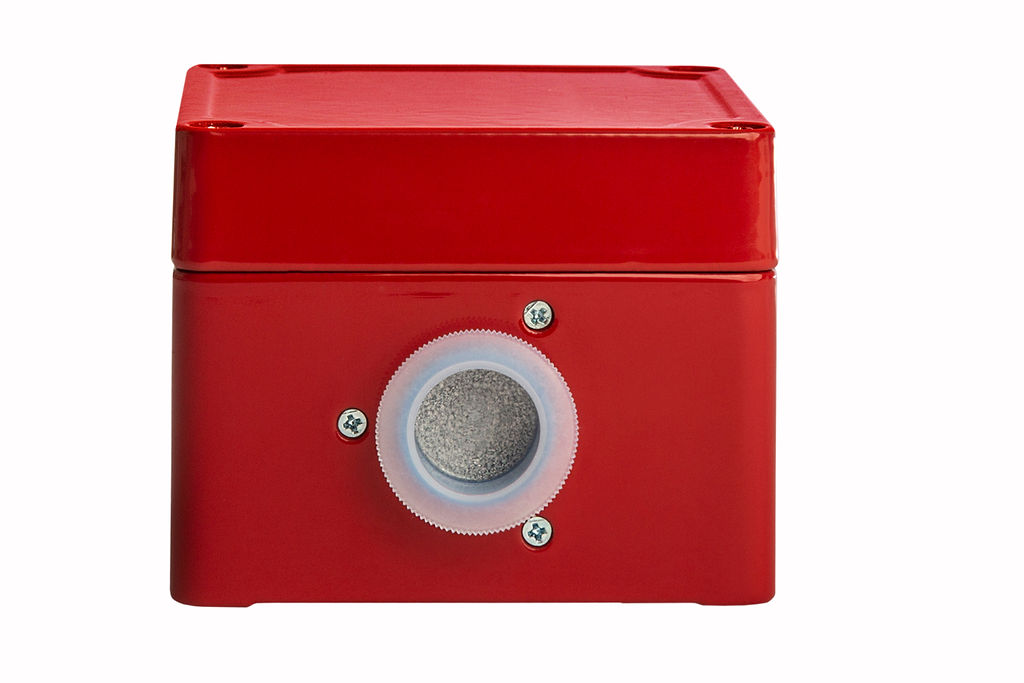

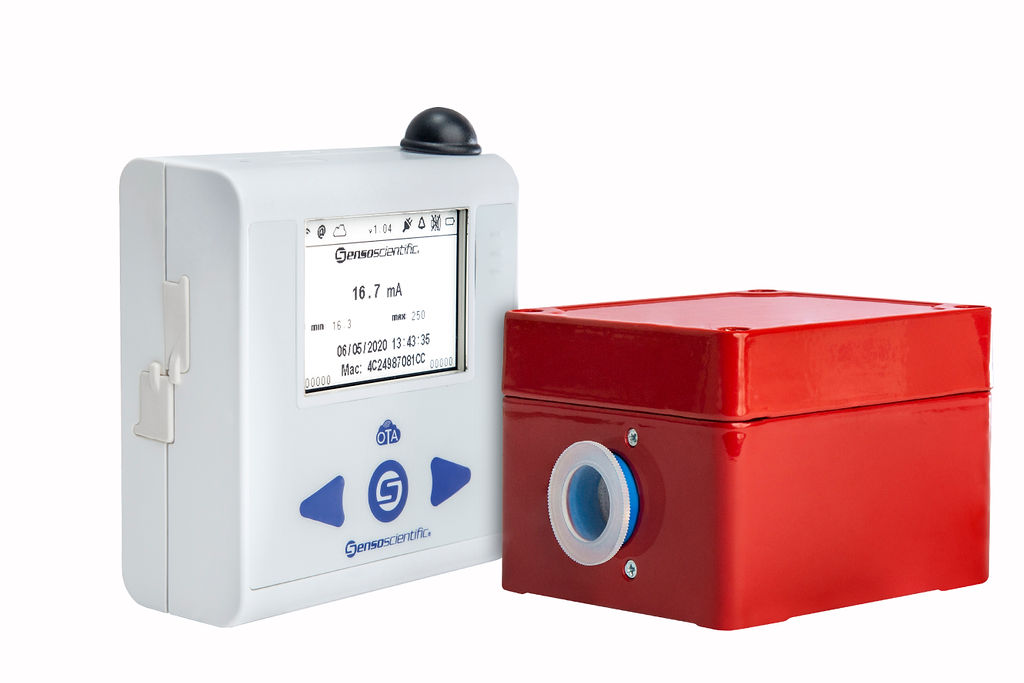

Oxygen Probe, 4-20mA (0 to 25% O₂)
Measure oxygen emissions up to 25% O₂.
Request a Quote
"*" indicates required fields
Request a Quote
"*" indicates required fields
- Product Description
- Key Features
- Product Specifications
- Part Numbers
SensoScientific’s 4-20mA Universal O₂ sensor is the leading device to monitor oxygen emissions. With a range of 0 to 25% O₂, this sensor measures and records O₂ readings then uses your existing Wi-Fi network to send collected data to the SensoScientific Cloud. This allows for real-time data access and immediate alert notifications sent via SMS, text message, voice, pager, cell phone, fax, email, and more. The SensoScientific Cloud allows you to access comprehensive reporting, view real-time data, print A2LA Accredited calibration certificates, and more. All data is time-stamped and cannot be altered according to FDA 21 CFR Part 11 requirements.
| ● Range: 0% to 25% O₂ | ● Calibration Certificate Included | ● SensoScientific Universal Sensor Compatibility |
| ● Aluminum Housing | ● Operating Range: -20°C to 45°C | ● IP65-Classified Housing |
| ● 4-20mA Output | ● Suitable for Wall Mounting | ● Lightweight Design |
| Oxygen Range: | 0 to 25% O₂ |
| Operating Principle: | 2-Electrode Cell |
| Output Signal: | 4-20mA |
| Response Time: | < 10 Sec |
| Repeatability: | < ±1% of Measuring Signal |
| Long-Term Output Drift: | < ±2% of Signal per Month |
| Temperature Range: | -20°C to 50°C (-4°F to 122°F) |
| Temperature Co-Efficient: | < ±2% of Signal per °C |
| Humidity Range: | 15% to 90% RH, Non-Condensing |
| Pressure Range: | 1 atm ±10% |
| Pressure Co-Efficient: | < ±0.003% of Signal per mBar |
| Expected Operating Time: | 18 Months in Air |
| Power Supply: | 24V d.c. ±15% |
| Housing Material: | Aluminum |
| Housing Weight: | Approx. 1.1lb (500g) |
| Dimensions: | Length: 3.55″ (90mm) |
| Width: 3.35″ (85mm) | |
| Height: 2.56″ (65mm) |
| GAS00-2 | Oxygen Probe |
| O2 | Oxygen Sensor (4-20mA) |
Product Description
SensoScientific’s 4-20mA Universal O₂ sensor is the leading device to monitor oxygen emissions. With a range of 0 to 25% O₂, this sensor measures and records O₂ readings then uses your existing Wi-Fi network to send collected data to the SensoScientific Cloud. This allows for real-time data access and immediate alert notifications sent via SMS, text message, voice, pager, cell phone, fax, email, and more. The SensoScientific Cloud allows you to access comprehensive reporting, view real-time data, print A2LA Accredited calibration certificates, and more. All data is time-stamped and cannot be altered according to FDA 21 CFR Part 11 requirements.
Key Features
| ● Range: 0% to 25% O₂ | ● Calibration Certificate Included | ● SensoScientific Universal Sensor Compatibility |
| ● Aluminum Housing | ● Operating Range: -20°C to 45°C | ● IP65-Classified Housing |
| ● 4-20mA Output | ● Suitable for Wall Mounting | ● Lightweight Design |
Product Specifications
| Oxygen Range: | 0 to 25% O₂ |
| Operating Principle: | 2-Electrode Cell |
| Output Signal: | 4-20mA |
| Response Time: | < 10 Sec |
| Repeatability: | < ±1% of Measuring Signal |
| Long-Term Output Drift: | < ±2% of Signal per Month |
| Temperature Range: | -20°C to 50°C (-4°F to 122°F) |
| Temperature Co-Efficient: | < ±2% of Signal per °C |
| Humidity Range: | 15% to 90% RH, Non-Condensing |
| Pressure Range: | 1 atm ±10% |
| Pressure Co-Efficient: | < ±0.003% of Signal per mBar |
| Expected Operating Time: | 18 Months in Air |
| Power Supply: | 24V d.c. ±15% |
| Housing Material: | Aluminum |
| Housing Weight: | Approx. 1.1lb (500g) |
| Dimensions: | Length: 3.55″ (90mm) |
| Width: 3.35″ (85mm) | |
| Height: 2.56″ (65mm) |
Part Numbers
| GAS00-2 | Oxygen Probe |
| O2 | Oxygen Sensor (4-20mA) |
How It Works
Probe
Probes attach to SensoScientific nodes via M8 connector to measure desired parameters.
Wireless Sensor
Nodes use Wi-Fi to upload data to the SensoScientific Cloud for immediate use.
24/7 Alert Notifications
From the cloud, you can view calibration certificates, access data records, and more.
